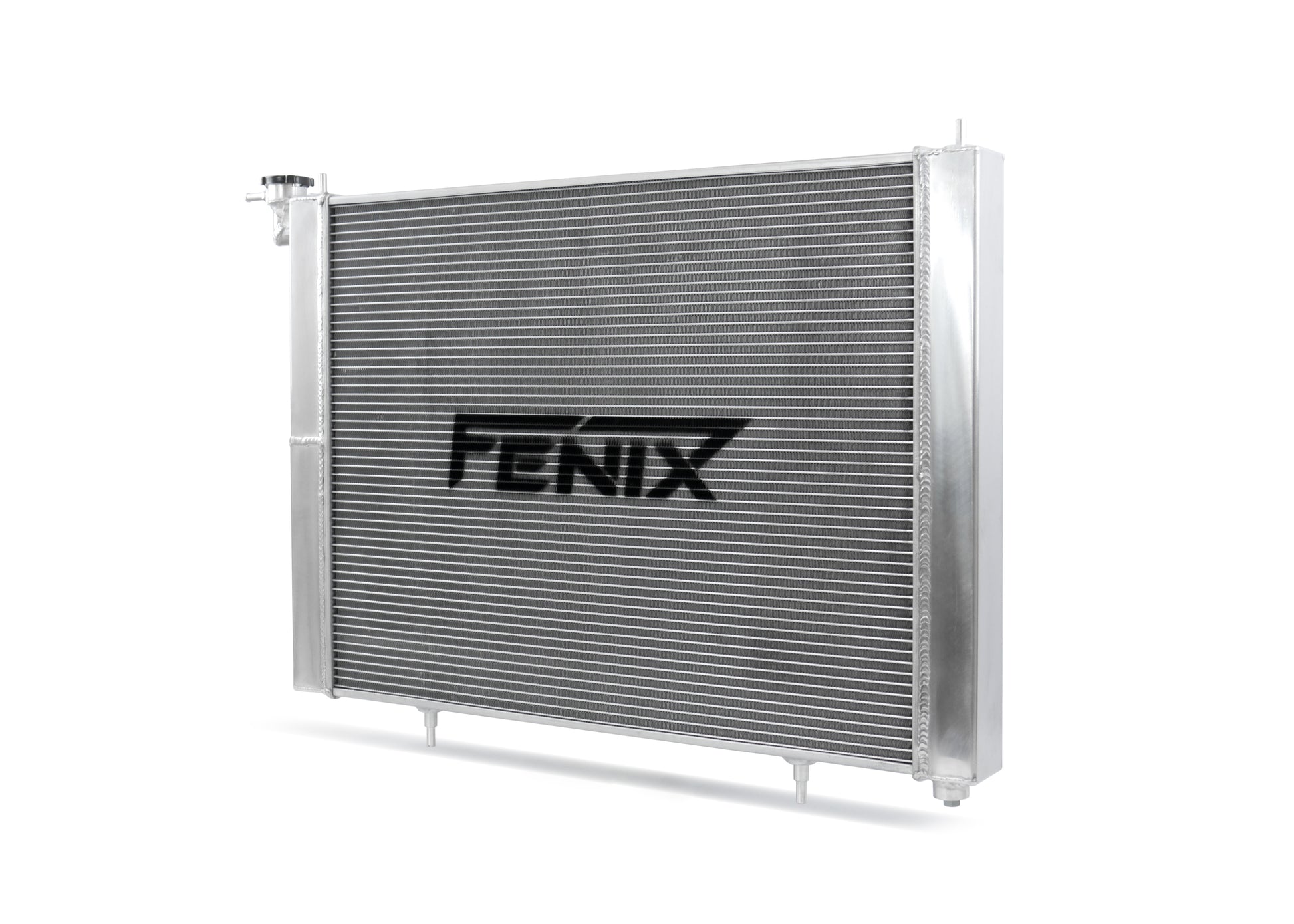

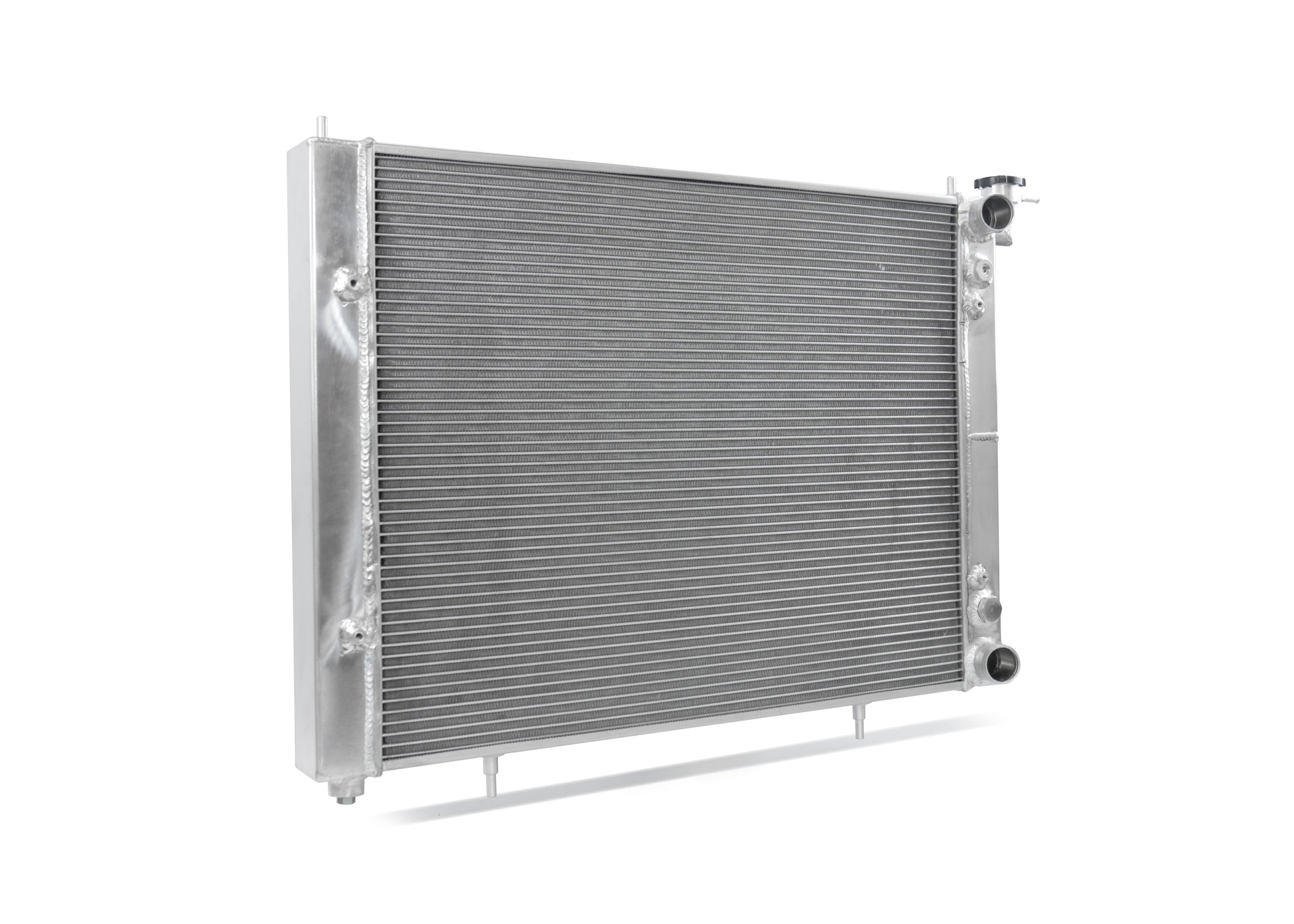

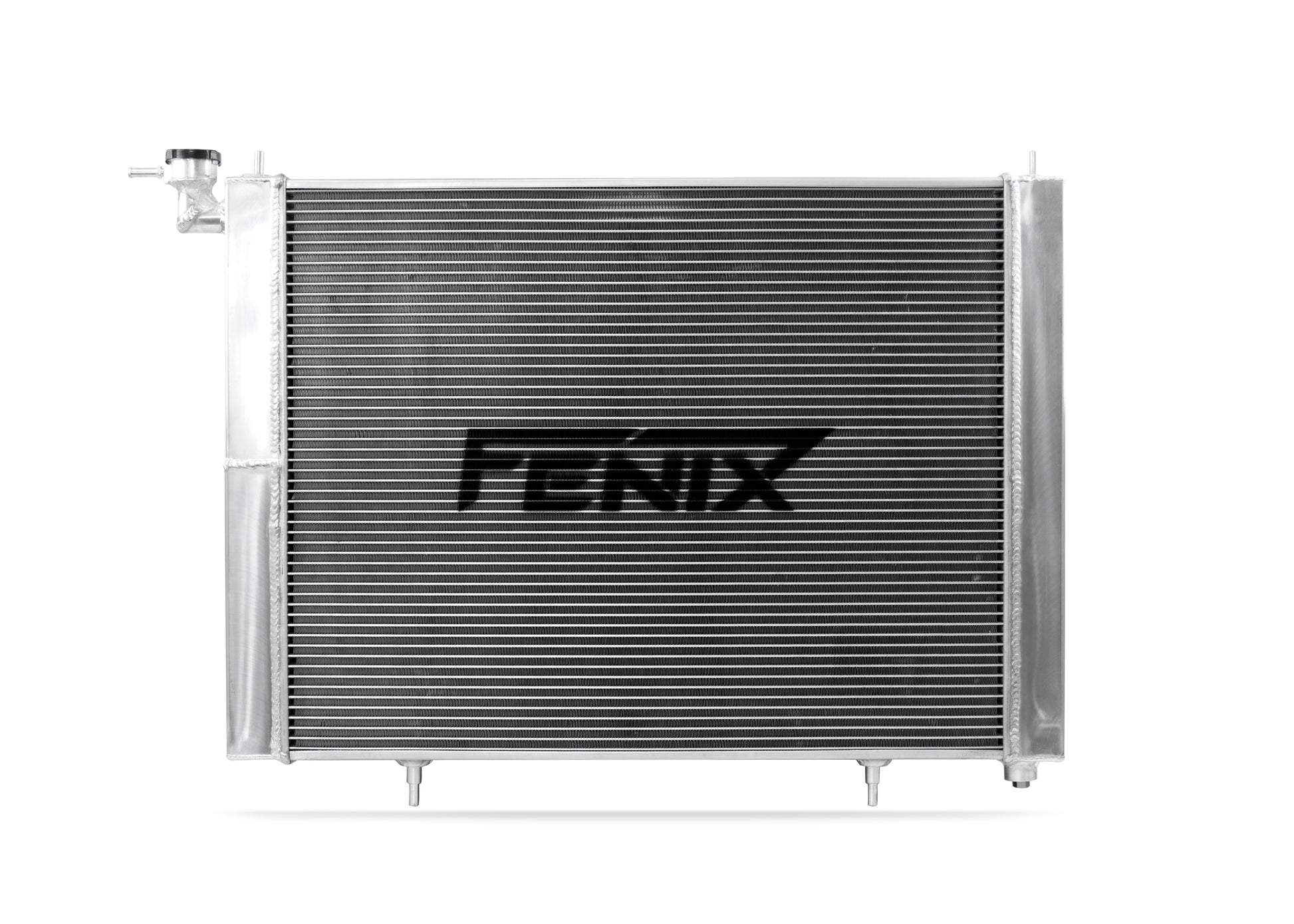

Nissan Laurel C34 & C35 RB20 & RB25 1993-2002 [Cross-Flow]

Nissan Laurel C34 & C35 RB20 & RB25 1993-2002 [Cross-Flow]

Regular price $599.00


FENIX: FTS1083-52M / BL.

Core size: 570mm x 458mm x 52mm.

Direct replacement for:

1993-97 Nissan Laurel C34 2.0L RB20DET / DE & 2.5L RB25DET / DE Petrol or 2.5L 1JZ-GTE & 3.0L 2JZ-GTE.
1997-02 Nissan Laurel C35 2.0L RB20DET / DE & 2.5L RB25DET /D E Petrol or 2.5L 1JZ-GTE & 3.0L 2JZ-GTE.

Transmission: Manual.


• High density core for improved cooling performance.
• Cross flow design with dual pass baffling.
• Full Aluminium construction.
• Angled outlets for aftermarket intake plenum clearance.

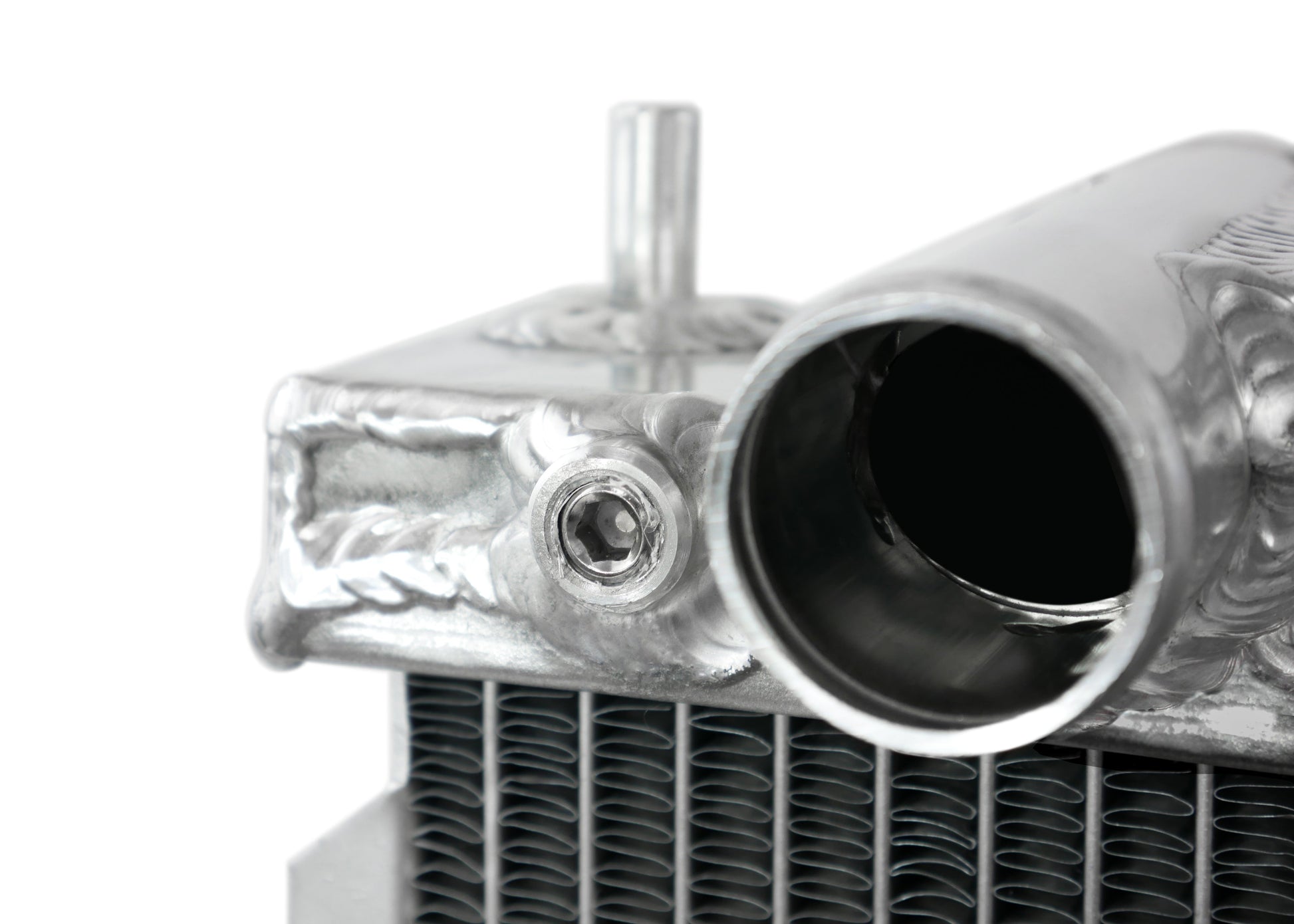

• 1/8” PT temperature sensor port and hex bung.

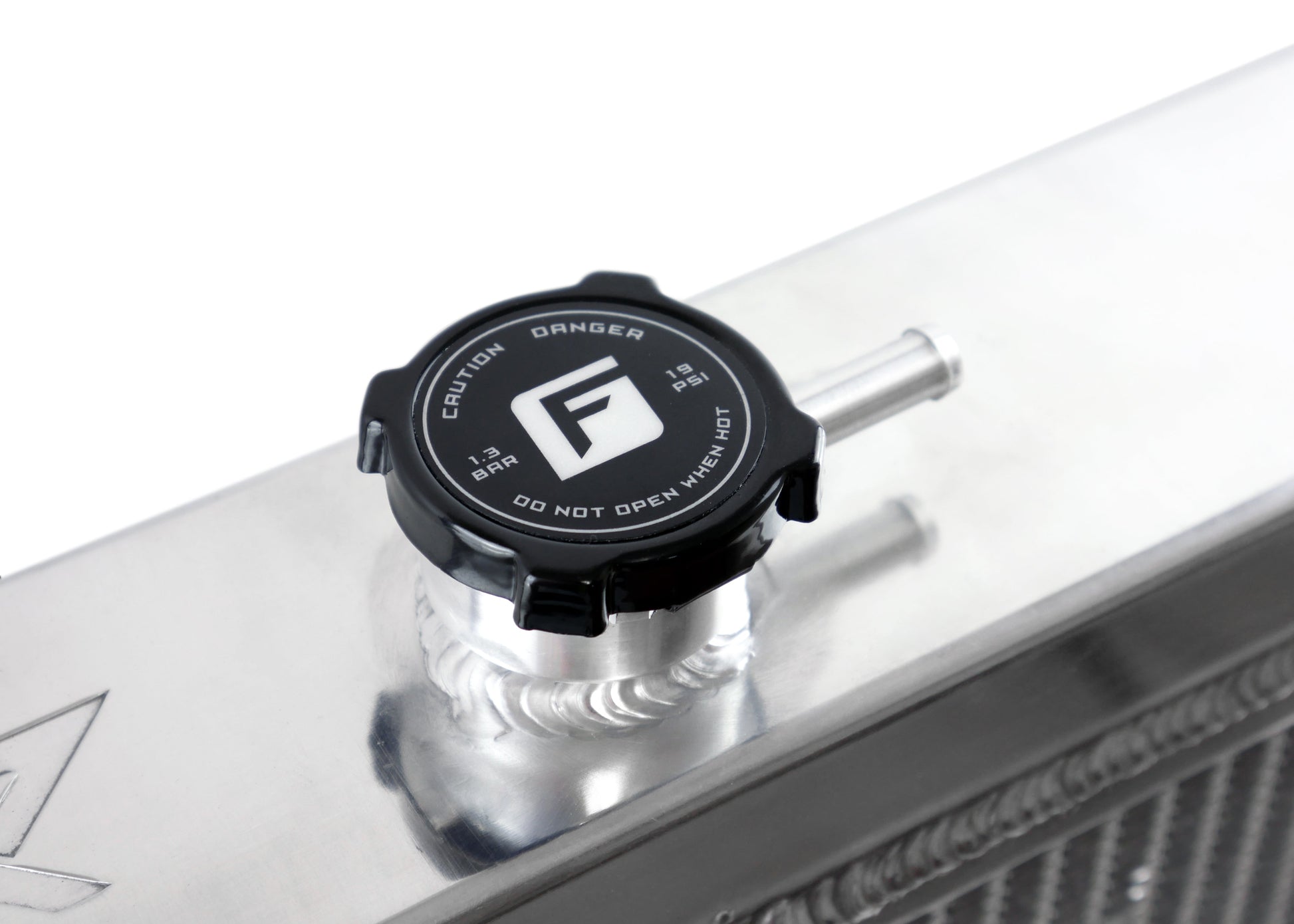

• V2 Fenix radiator cap.

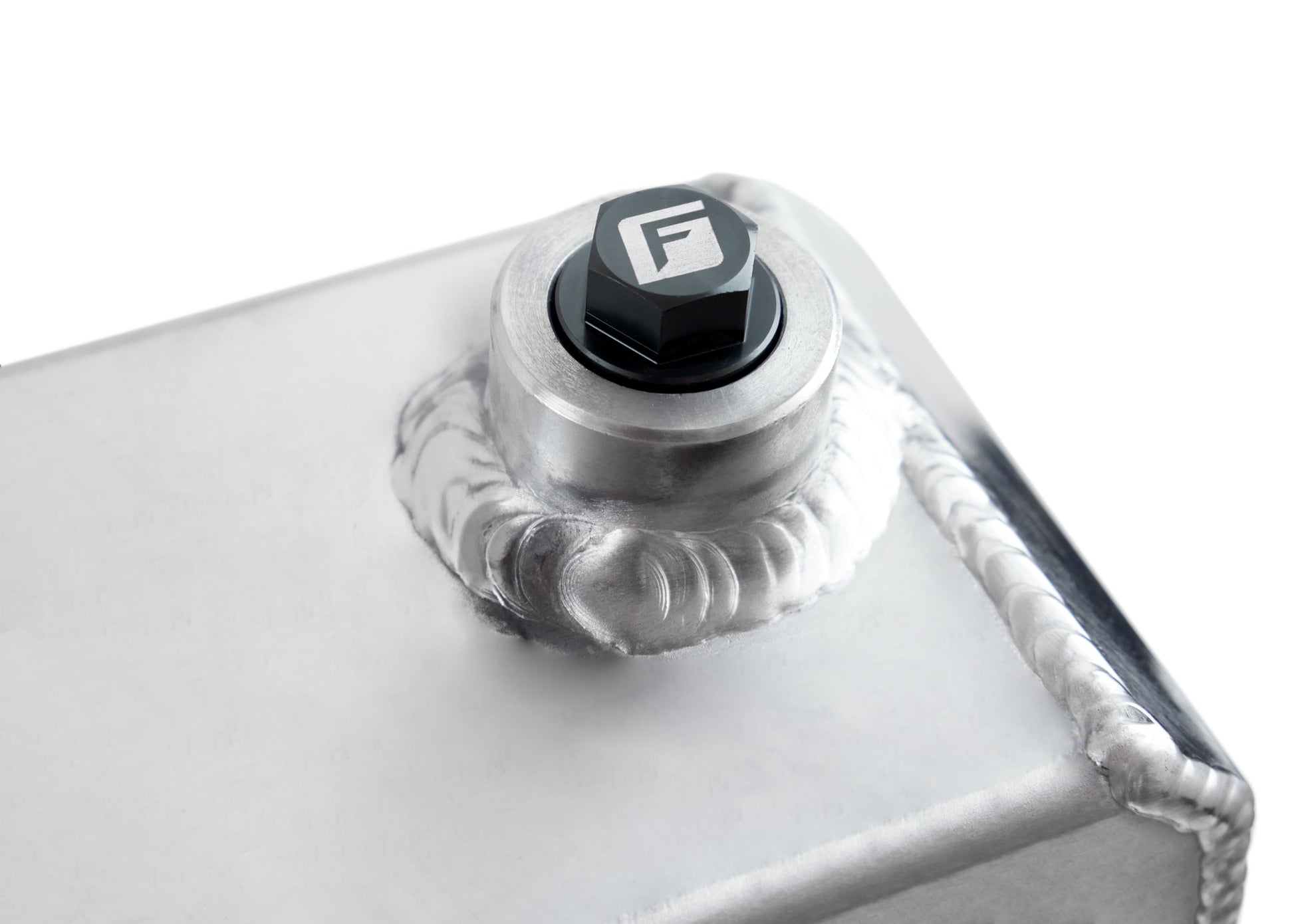

• V2 billet drainage bung.

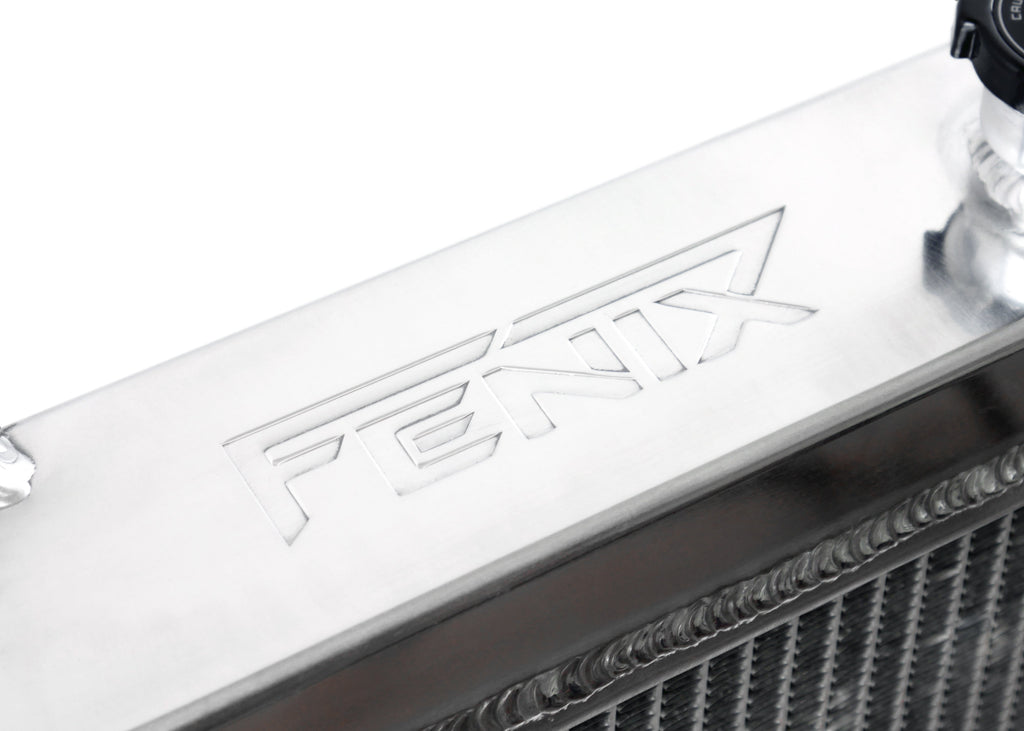

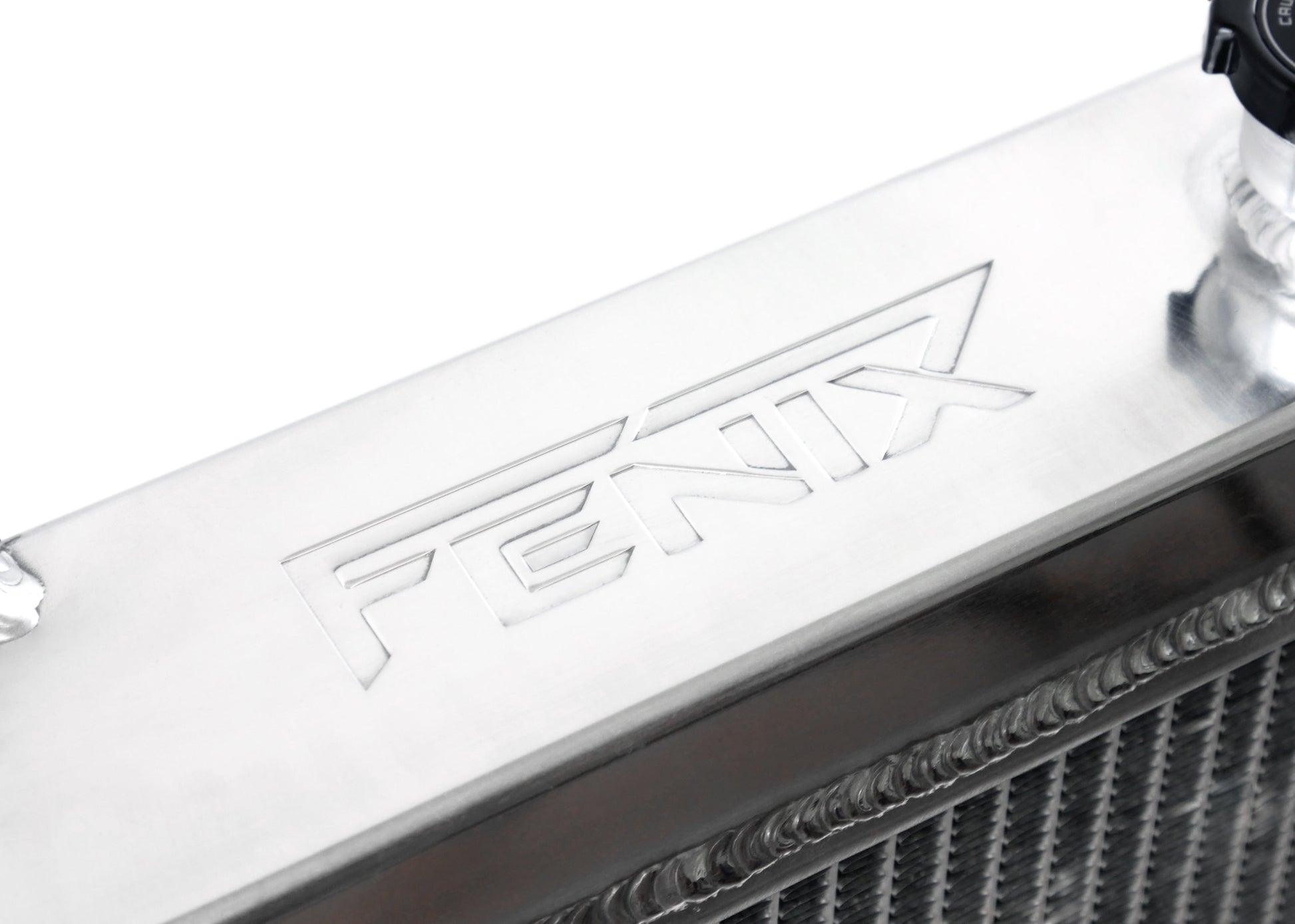

• Embossed Fenix logo on top plate.

NOTE: Will not suit factory clutch fan and shroud.

Special Order options are made to order and can take up to 2 weeks to produce. Contact us prior to purchasing If your order is urgent.


Designed to bolt directly into a C34 or C35 Laurel fitted with a RB or JZ engine conversion. This Fenix Performance Alloy Radiator features a cross-flow 52mm core for ultimate cooling on the street or track.

*Core size is tube and fin area only and does not include tanks or plate under tank.
