MER5405-PA28 (4, 6 & 8 Cyl - C Class - W203)

MER5405-PA28 (4, 6 & 8 Cyl - C Class - W203)

Regular price

Description

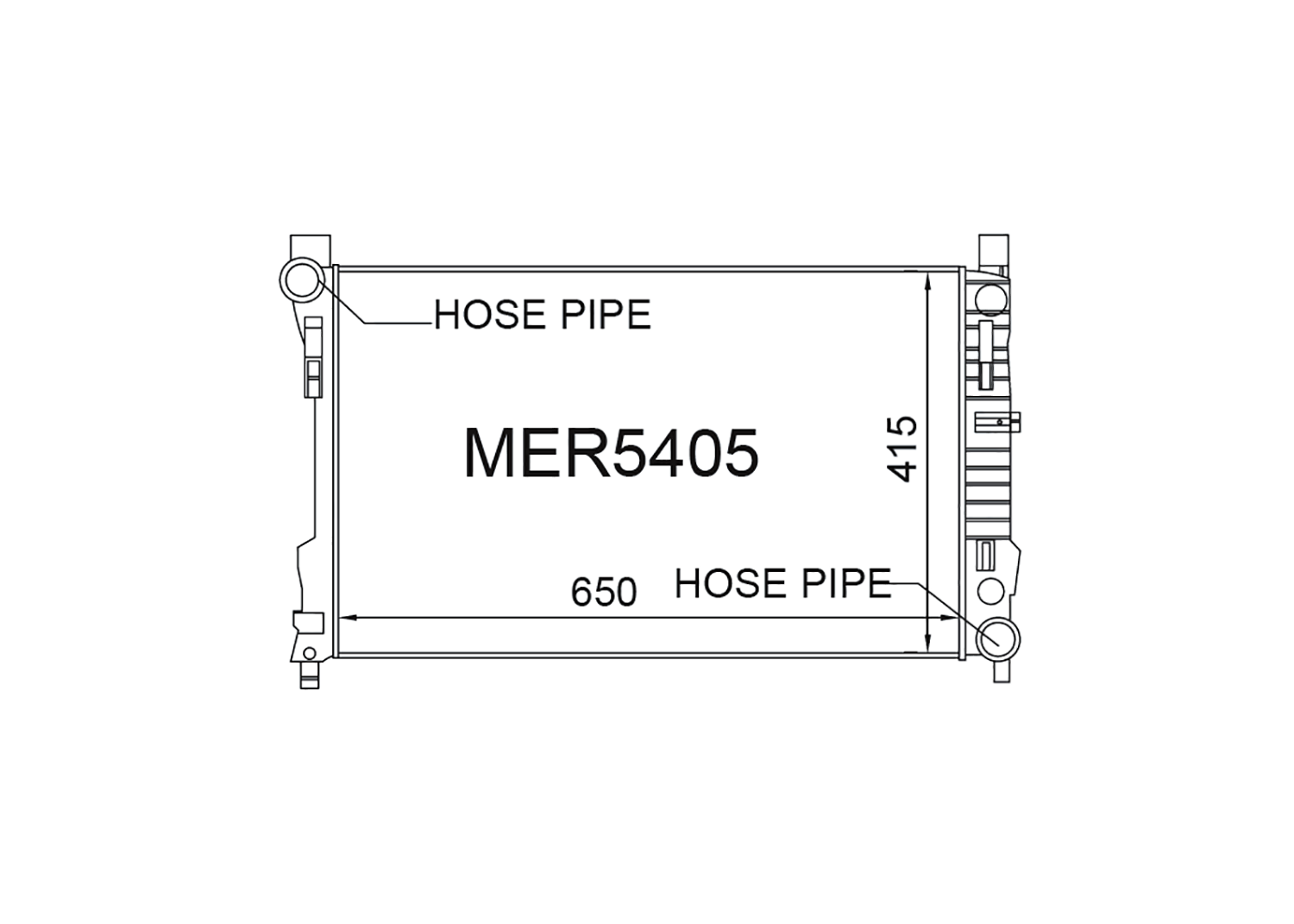

Core size: 650mm x 415mm x 28mm

(core size is tube and fin area only, not tanks or plate under tank)


FENIX Product ID:MER5405-PA28

Compatible Vehicles:All W203 C Class models - Quick Fit Hose Connections

Year: 2000-07

Engine: Petrol & Diesel 4-6 Cylinders

Petrol engines

Model

Type

Power, torque@rpm

C 160

1.8 16V I4 (M111)

122PS (90kW; 120hp)@?

C 180

1,998cc (122cuin) 16V I4 (M 111 E 20 EVO)

129PS (95kW; 127hp)@5500, 190N·m (140lb·ft)@4000

C 180 Kompressor

1,796cc (110cuin) 16V I4 supercharged (M271 E 18 ML red. 271.946)

143PS (105kW; 141hp)@5200, 220N·m (162lb·ft)@2500–4200

C 200 Kompressor (M111)

1,998cc (122cuin) 16V I4 supercharged (M111)

163PS (120kW; 161hp)@5300, 230N·m (170lb·ft)@2500–4800

C 200 Kompressor (M271)

1,796cc (110cuin) 16V I4 supercharged (M271)

163PS (120kW; 161hp)@5500, 240N·m (177lb·ft)@3000–4000

C 200 CGI

1,796cc (110cuin) 16V I4 supercharged (M271)

170PS (125kW; 168hp)@5500, 250N·m (184lb·ft)@3000

C 230 Kompressor (M271)

1,796cc (110cuin) 16V I4 supercharged (M271)

192PS (141kW; 189hp)@5800, 260N·m (192lb·ft)@3500–4000

C 230 Kompressor (M111)

2.3 16V I4 supercharged (M111)

193PS (142kW; 190hp)@5500

C 230

2,496cc (152cuin) 24V V6 (M272)

204PS (150kW; 201hp)@6100, 245N·m (181lb·ft)@2900–5500

C 240

2,597cc (158cuin) 18V V6 (M112)

172PS (127kW; 170hp)@5500, 240N·m (177lb·ft)@4500

C 280

2,997cc (183cuin) 24V V6 (M272)

231PS (170kW; 228hp)@6000, 300N·m (221lb·ft)@2500

C 320

3,199cc (195cuin) 18V V6 (M112)

218PS (160kW; 215hp)@5700, 310N·m (229lb·ft)@3000–4600

C 350

3,498cc (213cuin) 24V V6 (M272)

272PS (200kW; 268hp)@6000, 350N·m (258lb·ft)@2400

C 32 AMG

3,199cc (195cuin) 18V V6 supercharged (M 112 E 32 ML)

354PS (260kW; 349hp)@6100, 450N·m (332lb·ft)@4400

C 55 AMG

5,439cc (332cuin) 24V V8 (M113)

367PS (270kW; 362hp)@5750, 510N·m (376lb·ft)@4000

Diesel engines

Model

Type

Power, torque@rpm

C 200 CDI (102PS)

2,148cc (131cuin) 16V I4 turbo (OM611)

102PS (75kW; 101hp)@4200, 235N·m (173lb·ft)@1800

C 200 CDI (115PS)

2,148cc (131cuin) 16V I4 turbo (OM611)

115PS (85kW; 113hp)@4200, 250N·m (184lb·ft)@1400–2600

C 200 CDI (122PS)

2,148cc (131cuin) 16V I4 turbo (OM646)

122PS (90kW; 120hp)@4200, 270N·m (199lb·ft)@1600–2800

C 220 CDI (143PS)

2,148cc (131cuin) 16V I4 turbo (OM611)

143PS (105kW; 141hp)@4200, 315N·m (232lb·ft)@1800–2600

143PS (105kW; 141hp)@4200, 340N·m (251lb·ft)@1800–2000

C 220 CDI (150PS)

2,148cc (131cuin) 16V I4 turbo (OM646)

150PS (110kW; 148hp)@4200, 340N·m (251lb·ft)@1800–2000

C 270 CDI

2,685cc (164cuin) 20V I5 turbo (OM612)

170PS (125kW; 168hp)@4200, 370N·m (273lb·ft)@1600

170PS (125kW; 168hp)@4200, 400N·m (295lb·ft)@1800–2800

C 320 CDI

2,987cc (182cuin) 24V V6 turbo (OM642)

224PS (165kW; 221hp)@3800, 415N·m (306lb·ft)@1400–3800

224PS (165kW; 221hp)@3800, 510N·m (376lb·ft)@1600–2800
231PS (170kW; 228hp)

C 30 CDI AMG

2,950cc (180cuin) 20V I5 turbo (OM612)

231PS (170kW; 228hp)@3800, 540N·m (398lb·ft)@2000–2500

Transmission Type: Manual or Automatic

Notes: 28mm Core +Quick Fit Hose Connections


FENIXMercedes-Benzradiators are designed and manufactured to be better than OEM. We find the weak points in OEM radiators and fix them. For any queries please call0800 757 333during business hours or emailfenixsales@hotmail.co.nz
