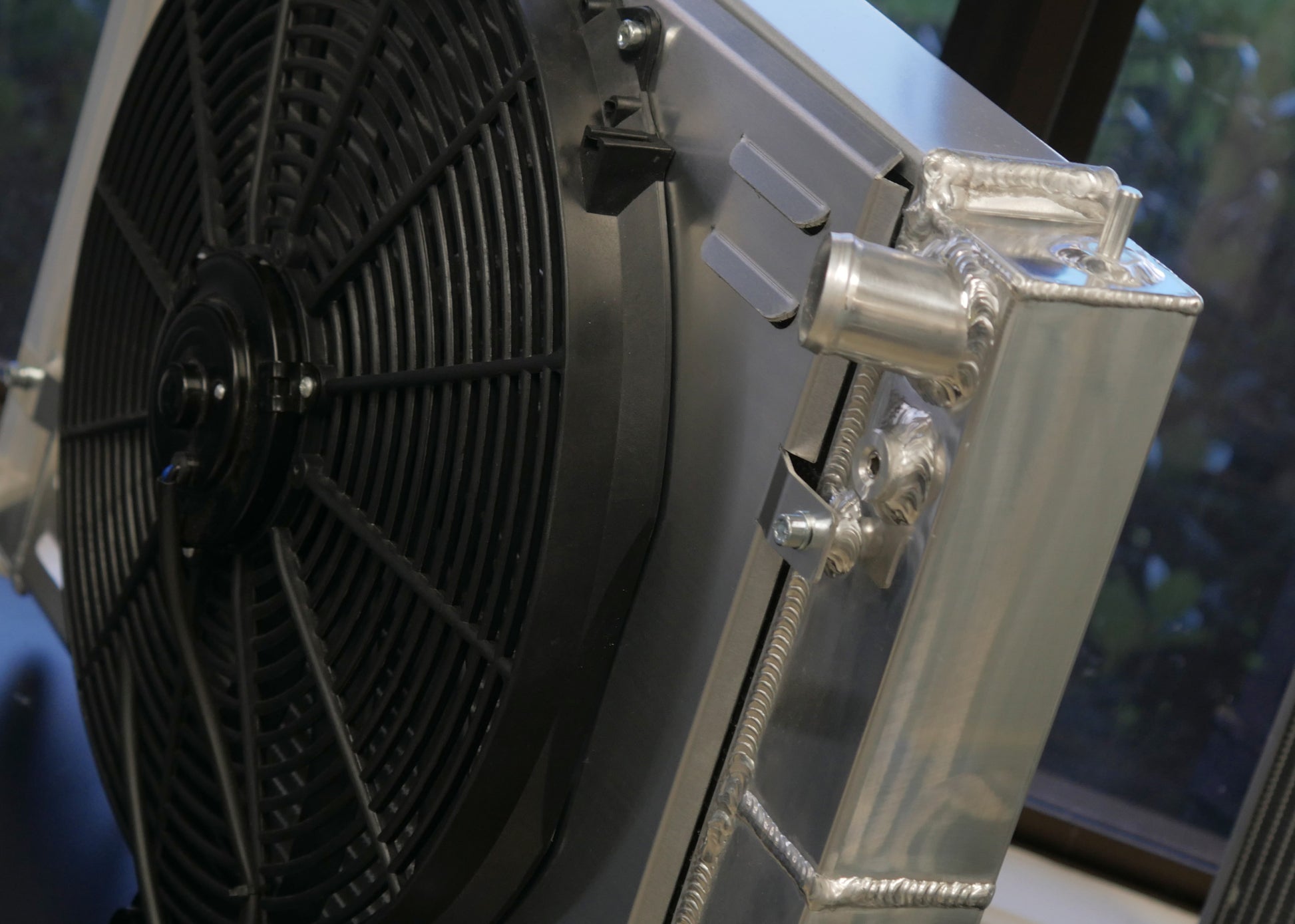

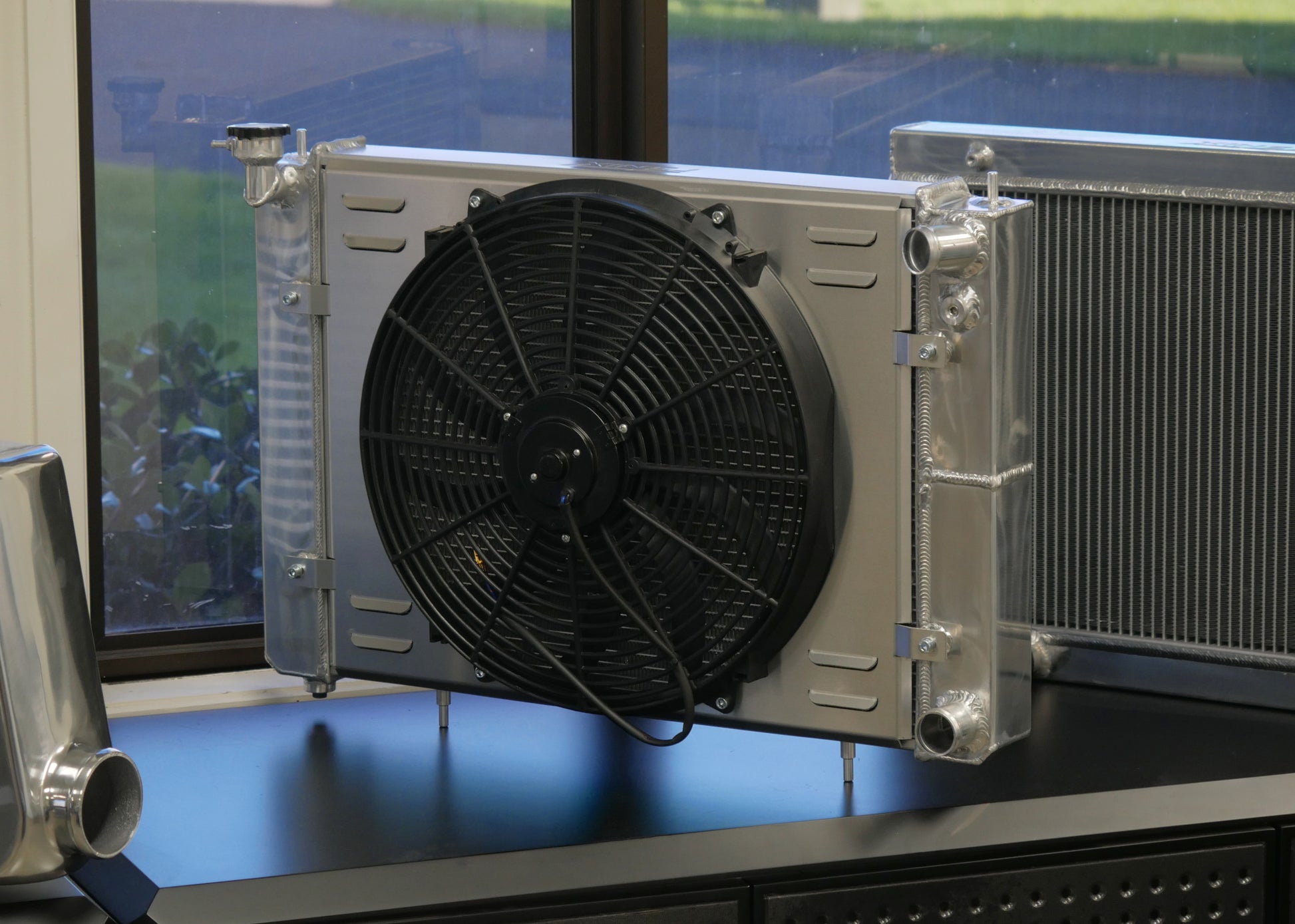

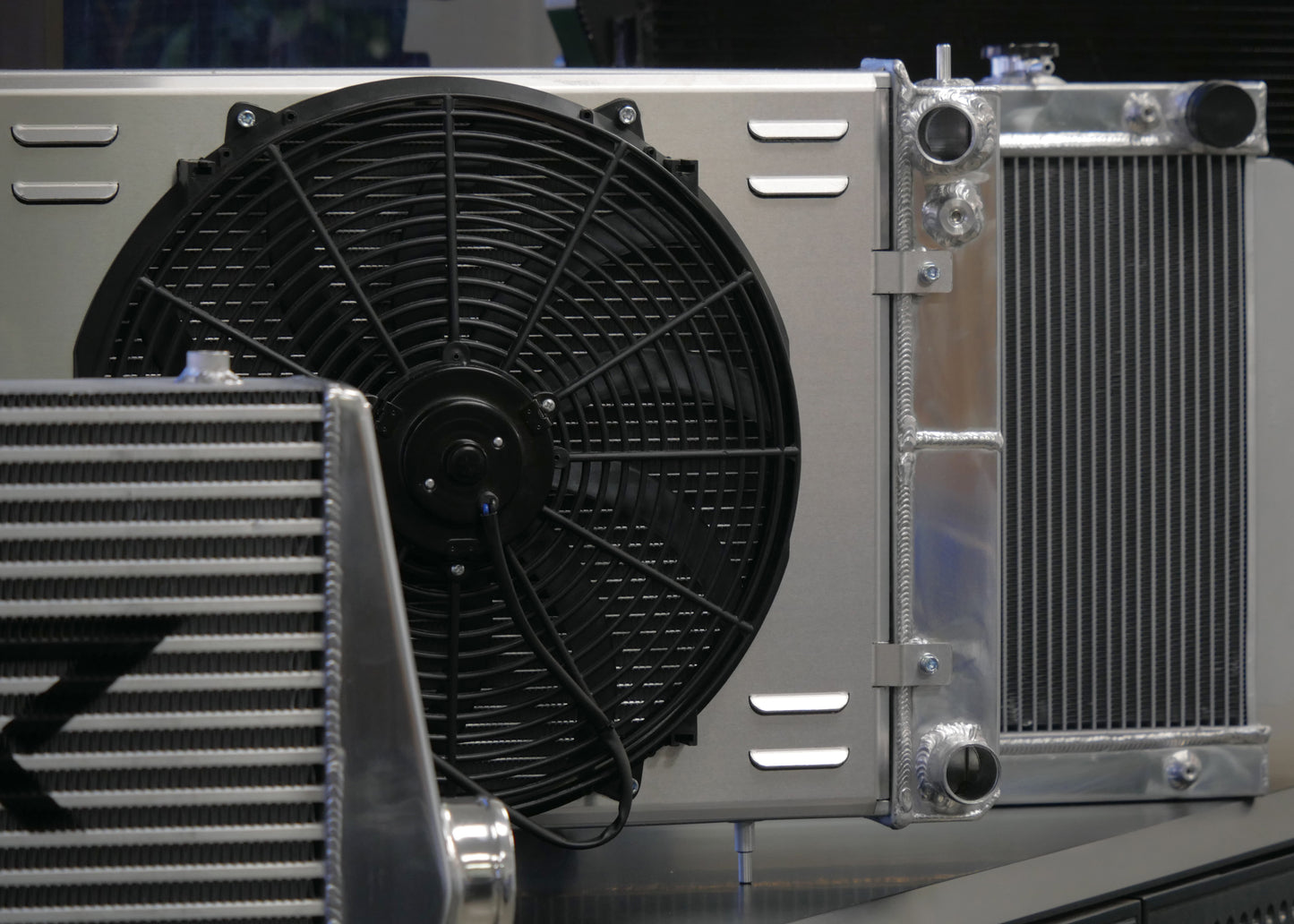

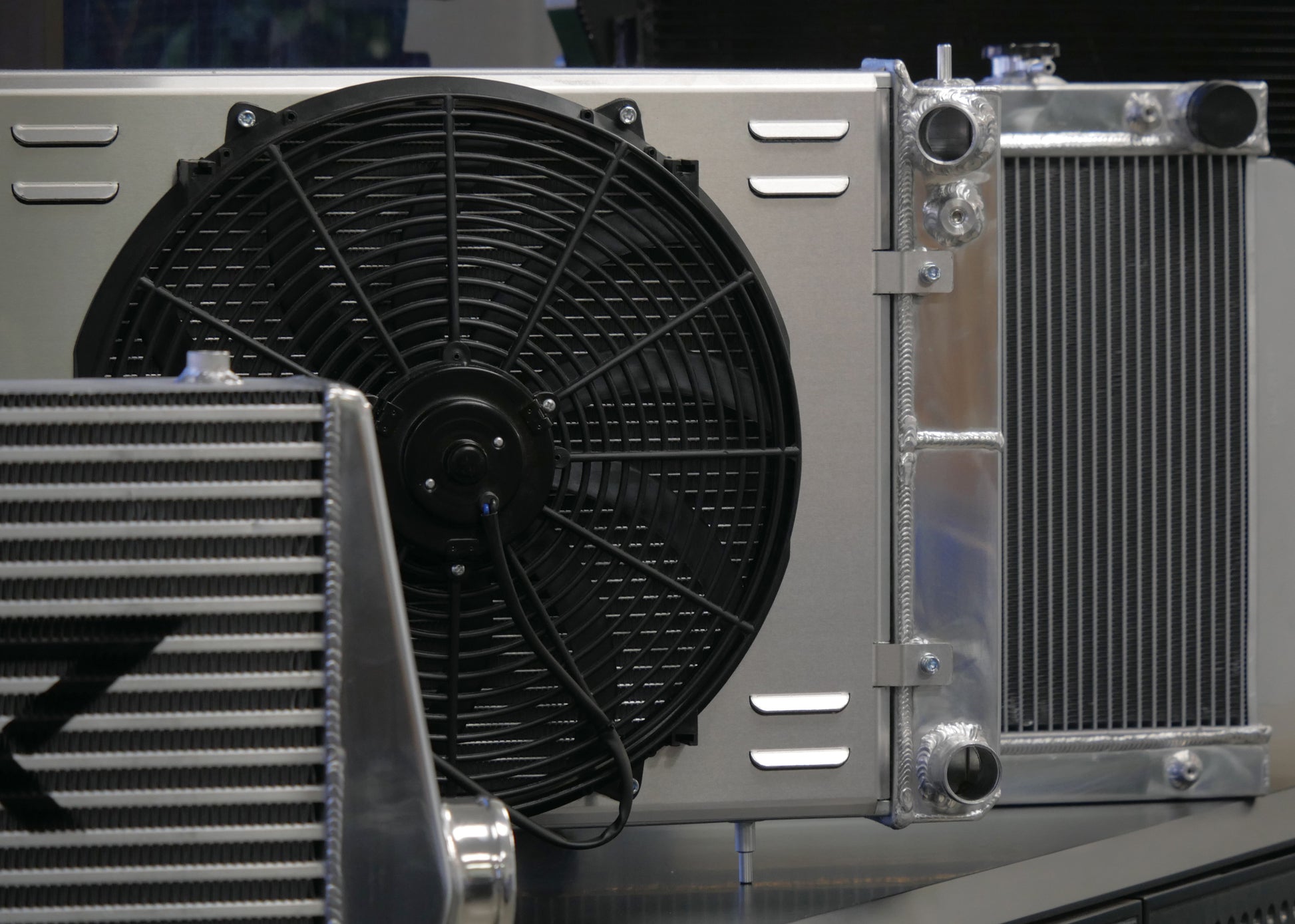

Nissan Silvia S14 / S15 with JZ Fan Shroud Kit [FTS0002]

Shroud Dimensions: 535mm x 435mm x 10mm.
Fan Dimensions: 16" / 357mm x 397mm x 62.6mm.

Direct replacement for Fenix Radiator part no:

FTS0002-56M / -BL.

1993-98 Nissan Silvia / 200SX S14 fitted with 2.5L 1JZ-GTE & 3.0L 2JZ-GTE.

1999-02 Nissan Silvia / 200SX S15 fitted with 2.5L 1JZ-GTE & 3.0L 2JZ-GTE.
Transmission: Manual.

Features [Shroud]:

• Full Aluminium construction.
• Raw alloy or powder coated finish.
• Manufactured in New Zealand.
• Centre or right fan position.

Features [SPAL]:
• Pull type [non-reversible].
• IP68 Water & Dust resistant motor.
• AMPS 11 / 132 Watts.
• 1556CFM / 2644m3/h rated.
• Ultra slimline design.

NOTE: Will not suit aftermarket crank pulley. Due to limited engine bay space with RB engines, our fan shroud kit is only compatible with JZ conversions. Fan does not use OEM connectors. We recommend this kit is installed by a professional mechanic or auto electrician.

Special Order options are made to order and can take up to 2 weeks to produce. Contact us prior to purchasing If your order is urgent.

_______________________________________________________________________

Upgrade your old, stock fan shroud with a Fenix Performance Nissan Fan Shroud Kit. Designed with performance and reliability in mind, our alloy fan shroud kits significantly increase the cooling ability on the track or street while offering a factory fit to your oem or Fenix Performance Alloy Radiator.

*Core size is tube and fin area only and does not include tanks or plate under tank.
