Nissan Silvia S14 / S15 with RB & JZ 1993-2002 | Performance Radiator

NEW MODEL DUE LATE OCTOBER.

Core size: 536mm x 411mm x 40mm.

Replacement for:

1993-98 Nissan Silvia / 200SX S14 fitted with 2.0L RB20DET / DE & 2.5L RB25DET / DE or 2.5L 1JZ-GTE & 3.0L 2JZ-GTE.

1999-02 Nissan Silvia / 200SX S15 fitted with 2.0L RB20DET/DE & 2.5L RB25DET/DE or 2.5L 1JZ-GTE & 3.0L 2JZ-GTE.
Transmission: Manual.

Features:

• Dual pass baffling.
• Full Aluminium construction.
• 5mm High density core.

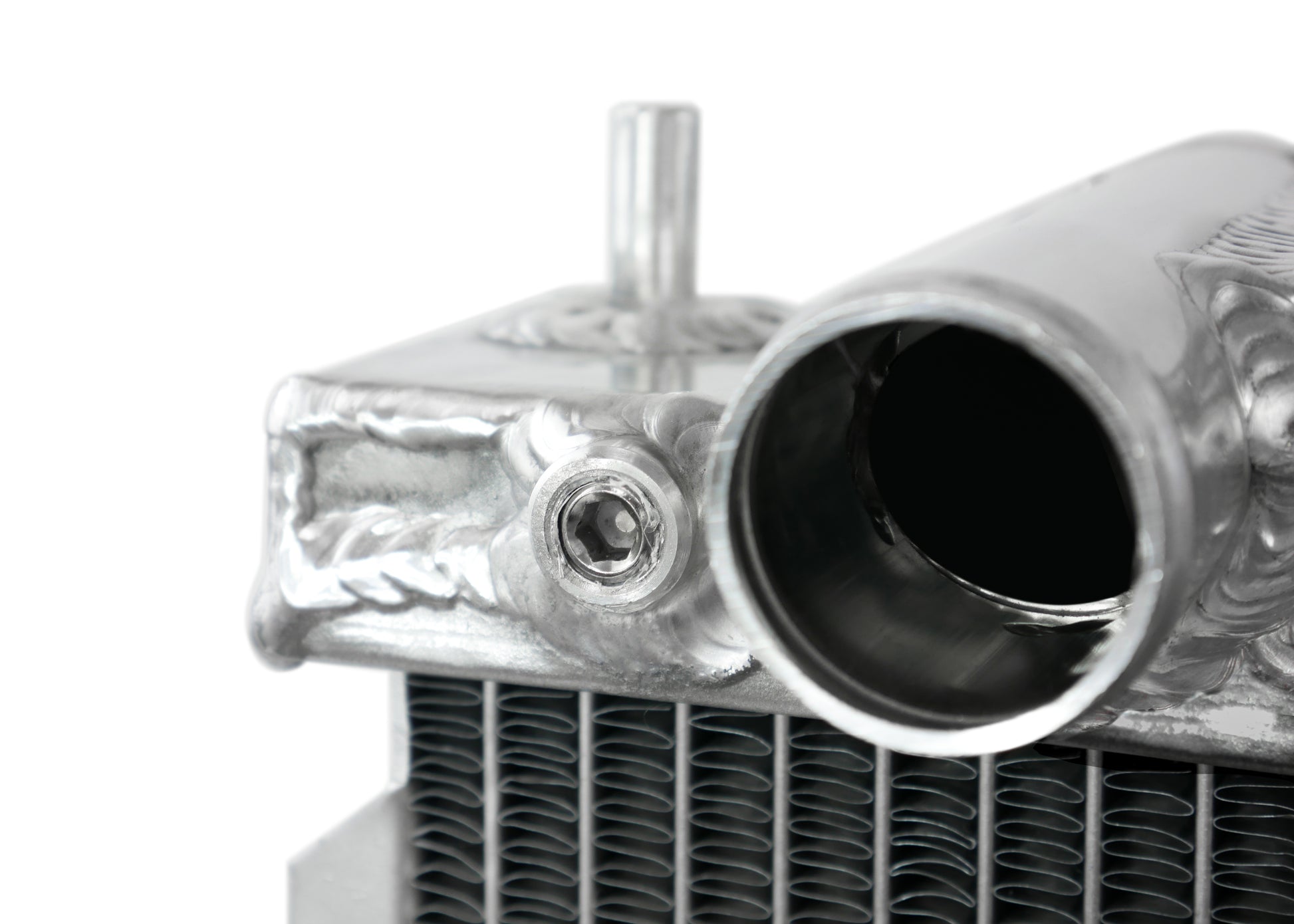

• 1/8” PT temperature sensor port and hex bung.

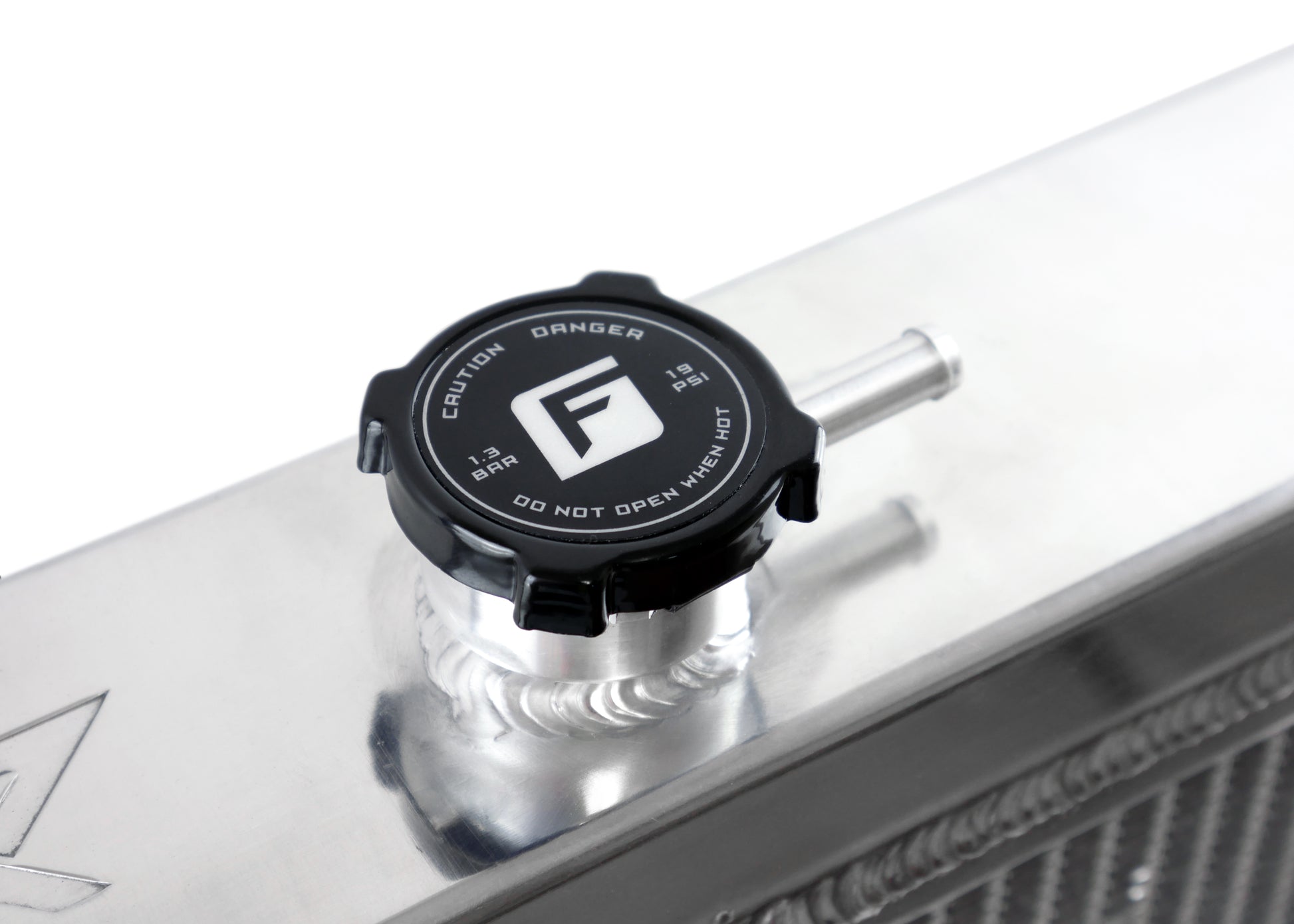

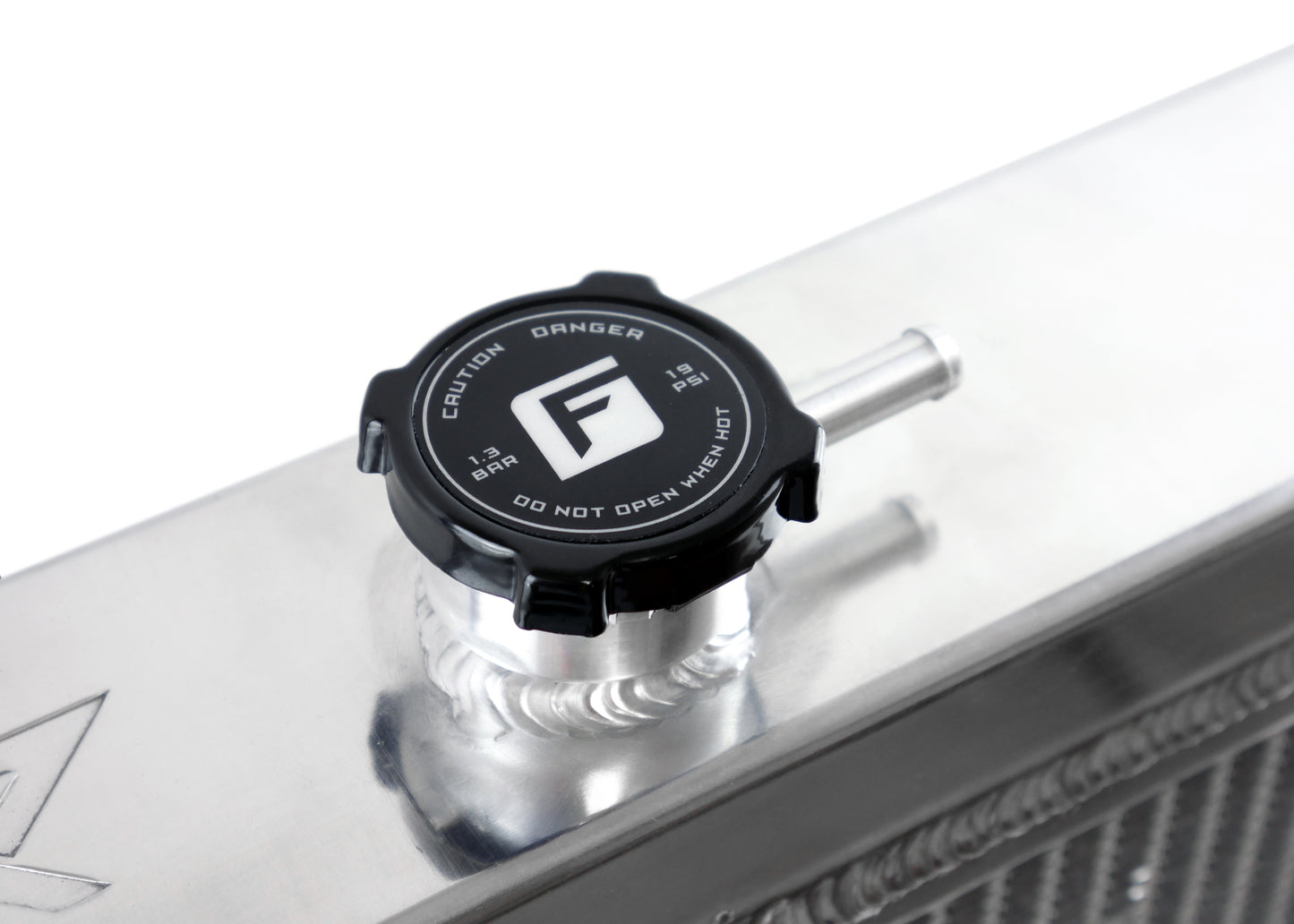

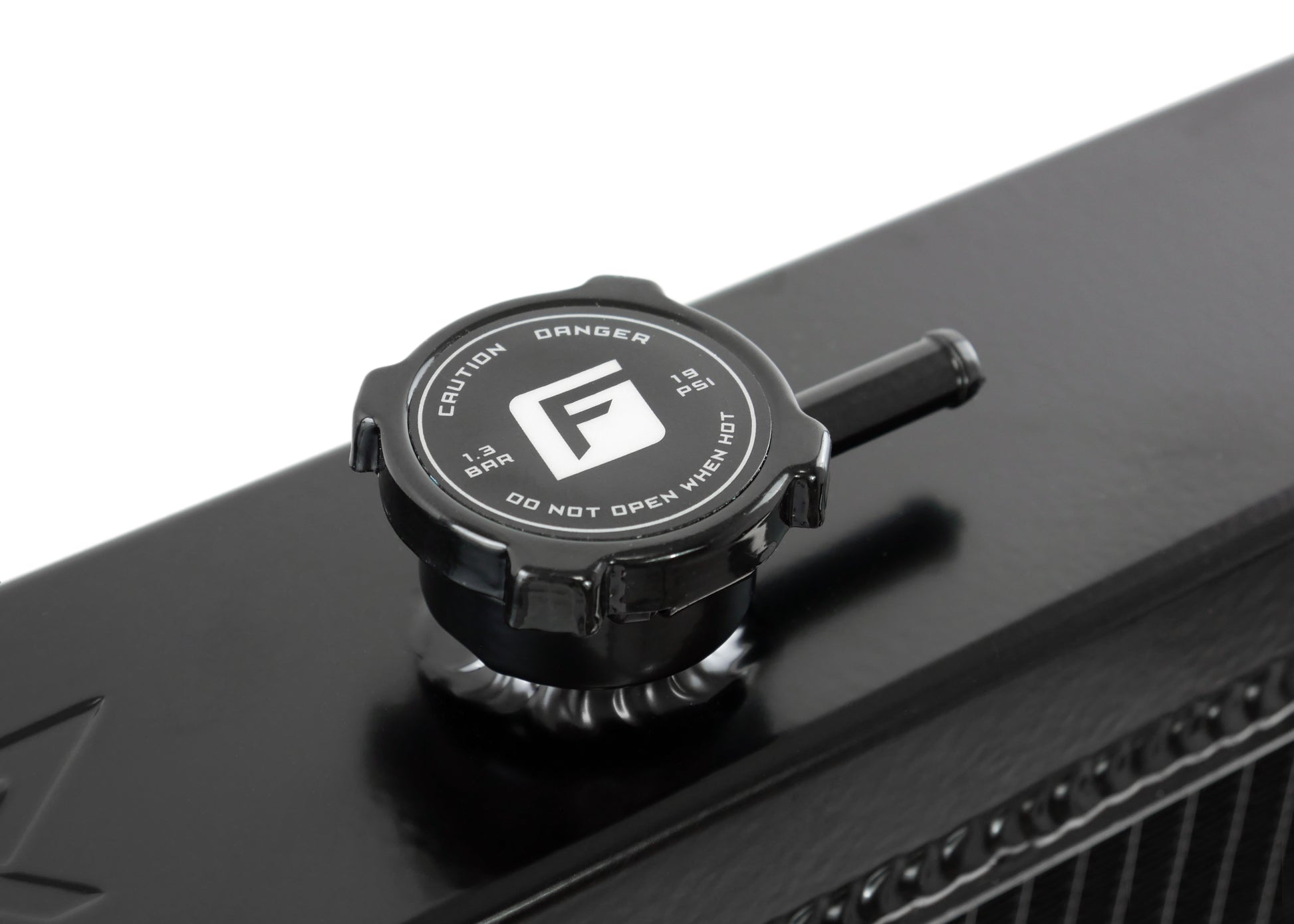

• V2 Fenix radiator cap.

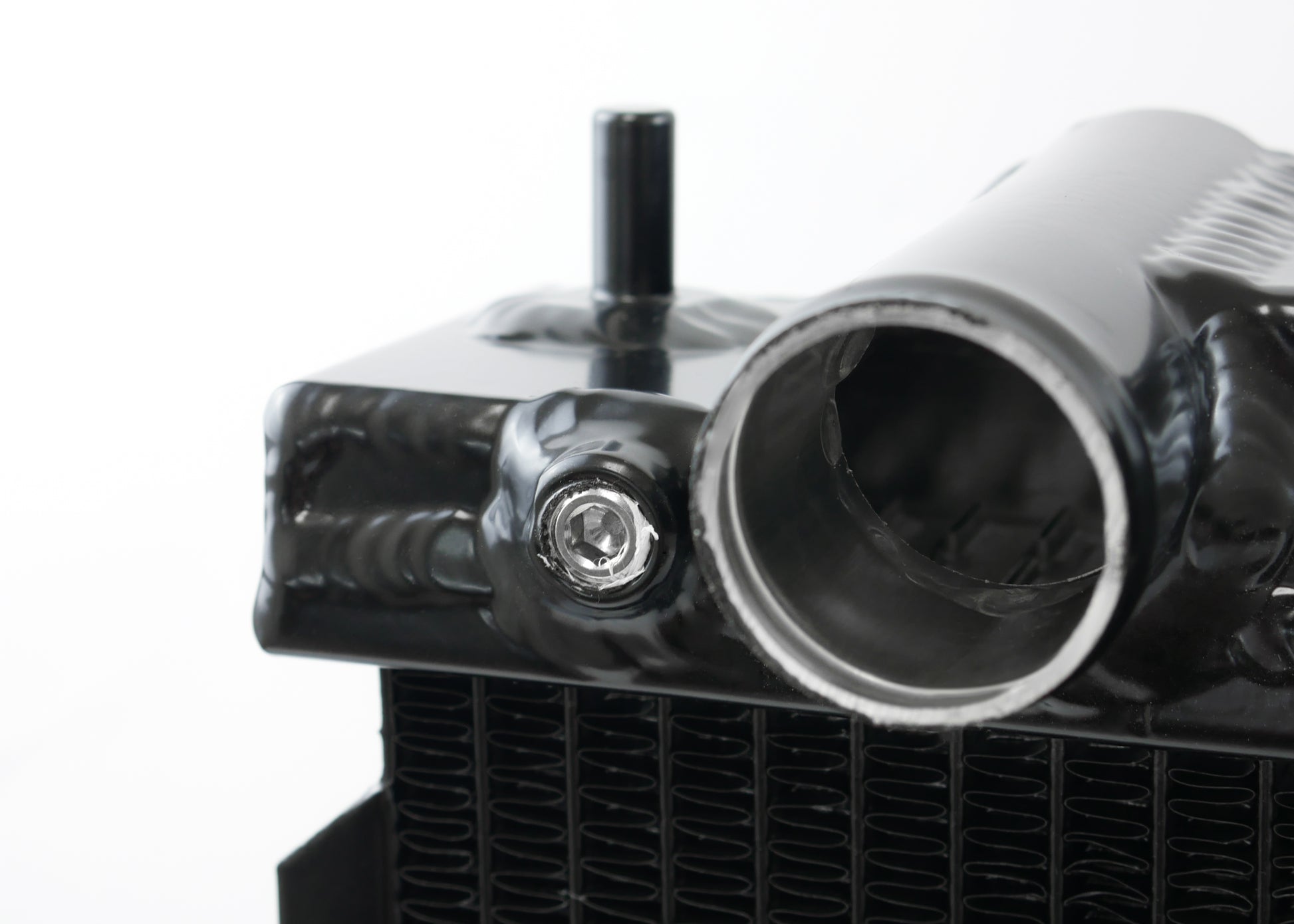

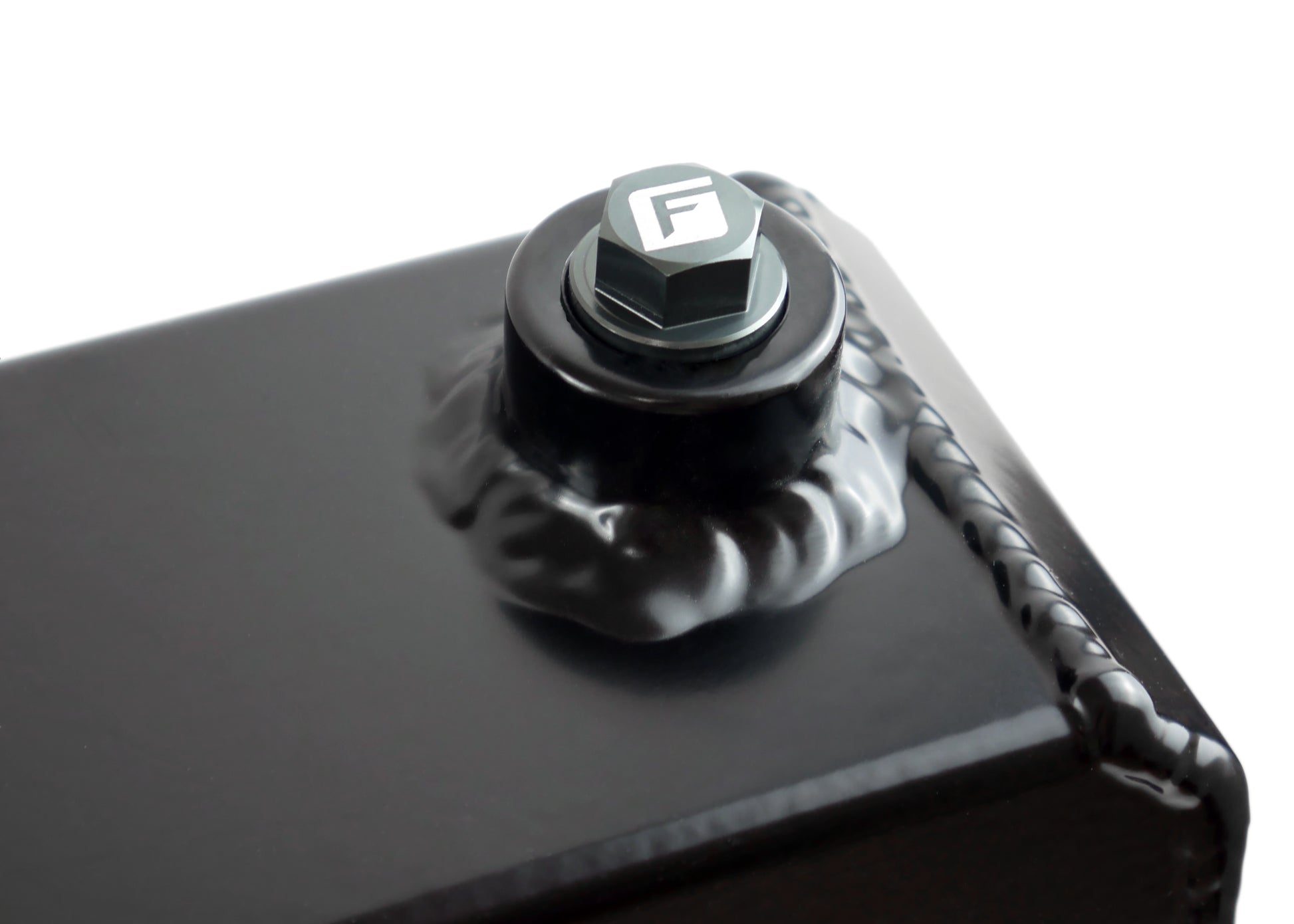

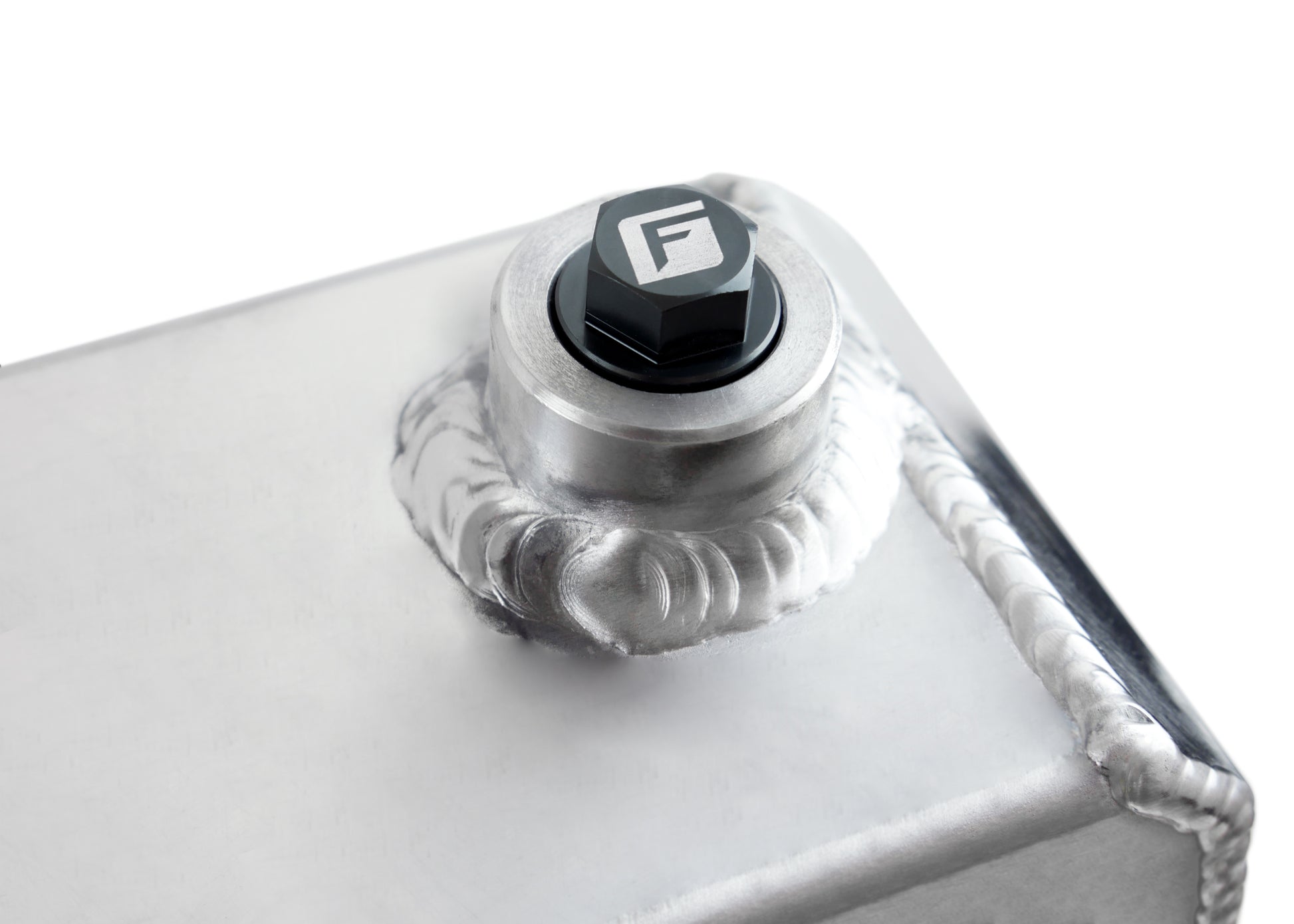

• V2 billet drainage bung.

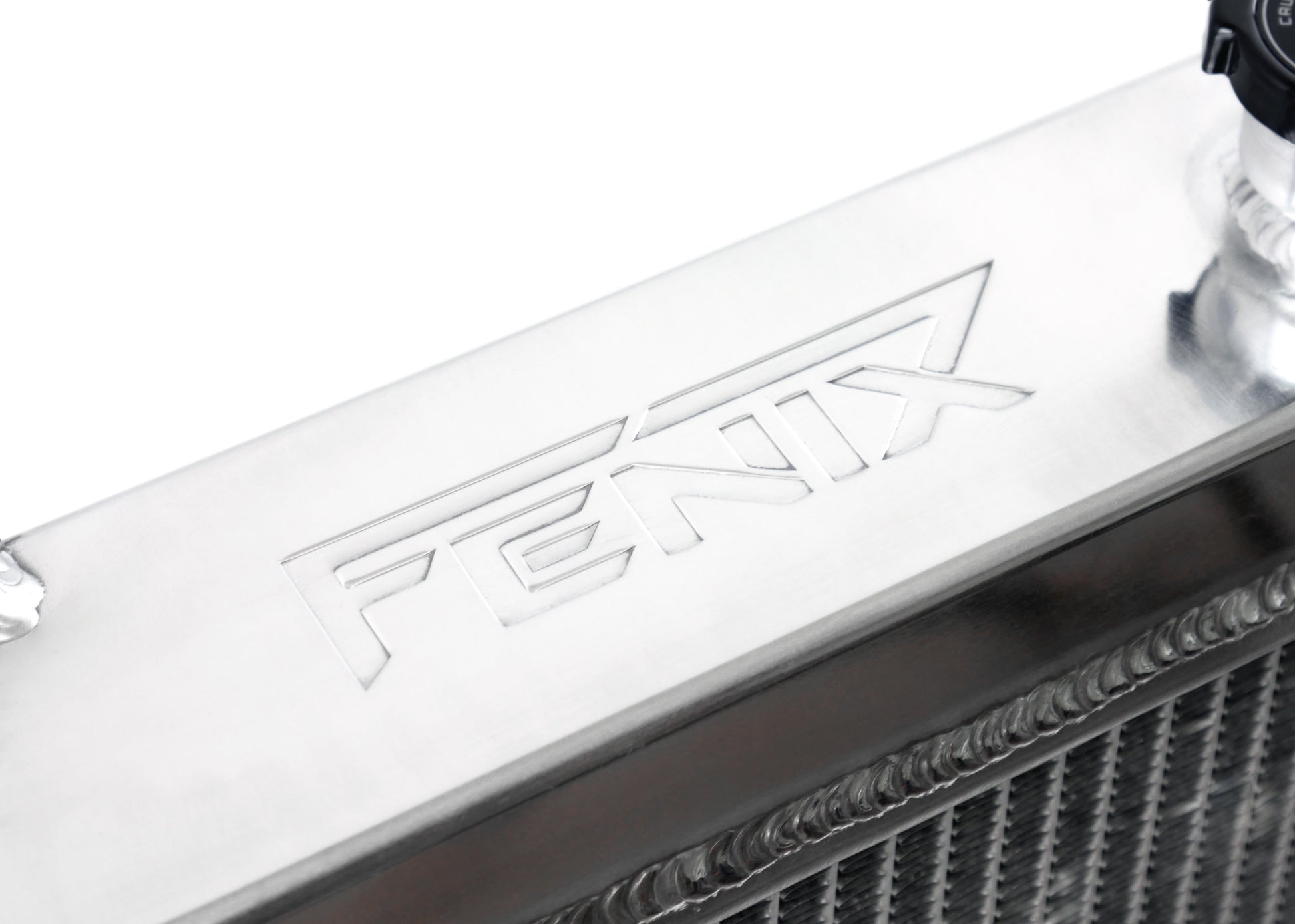

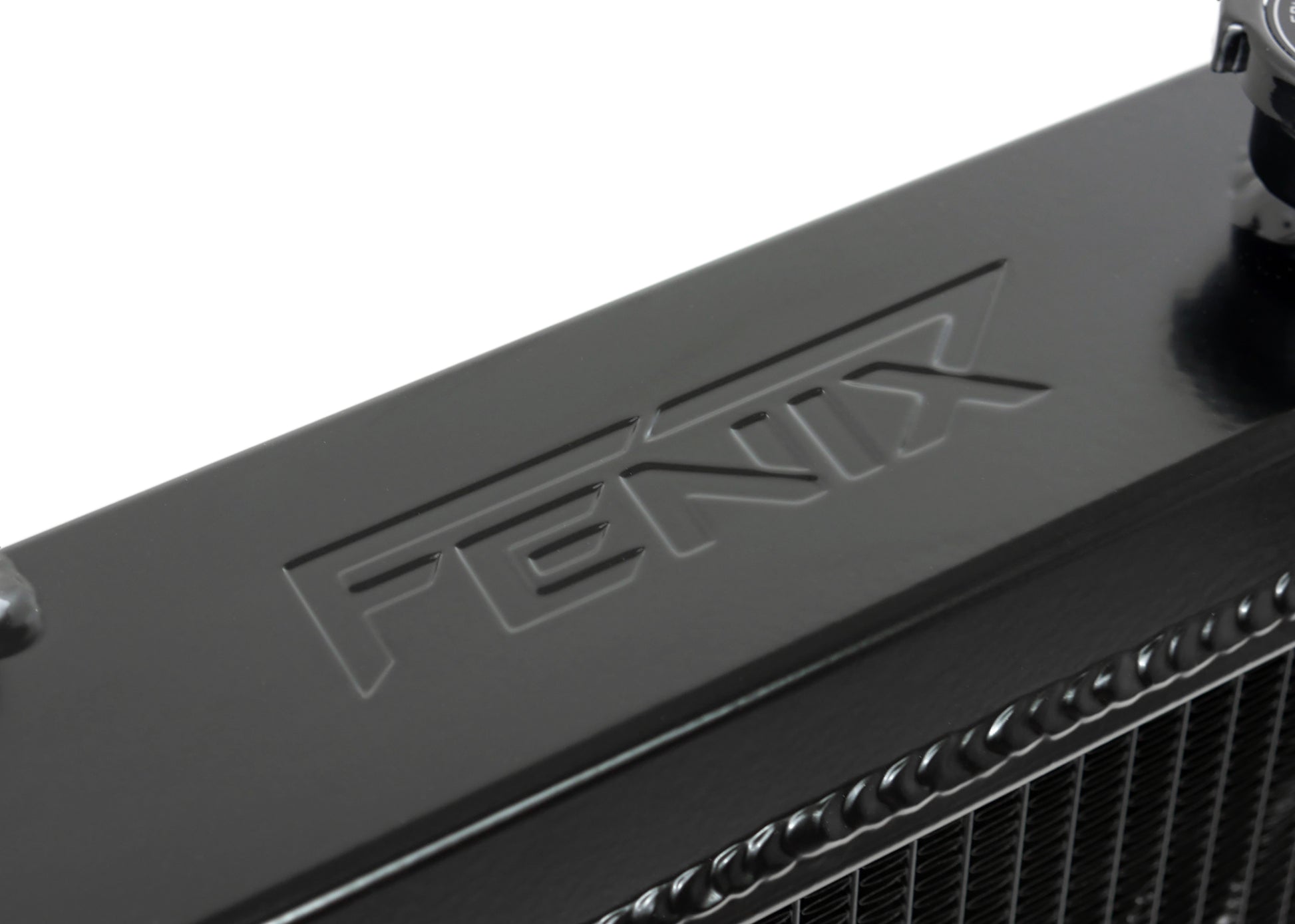

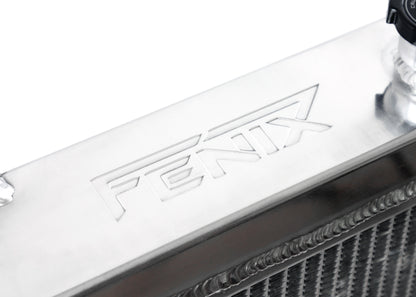

• Embossed Fenix logo on top tank.

NOTE: Will not suit OEM clutch fan. RB engines must be mounted as far back as possible for clearance.

Special Order options are made to order and can take up to 2 weeks to produce. Contact us prior to purchasing If your order is urgent.

_______________________________________________________________________

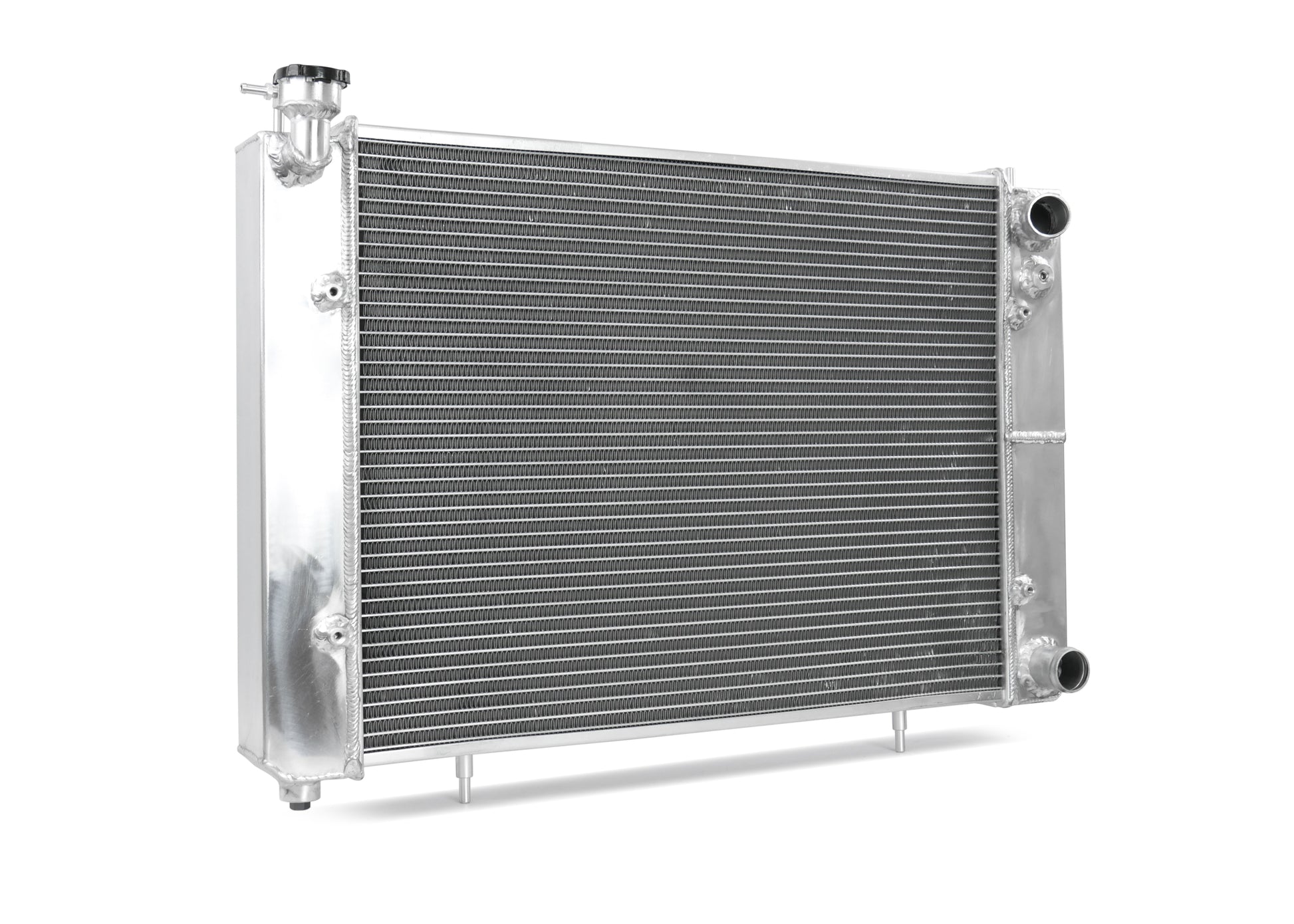

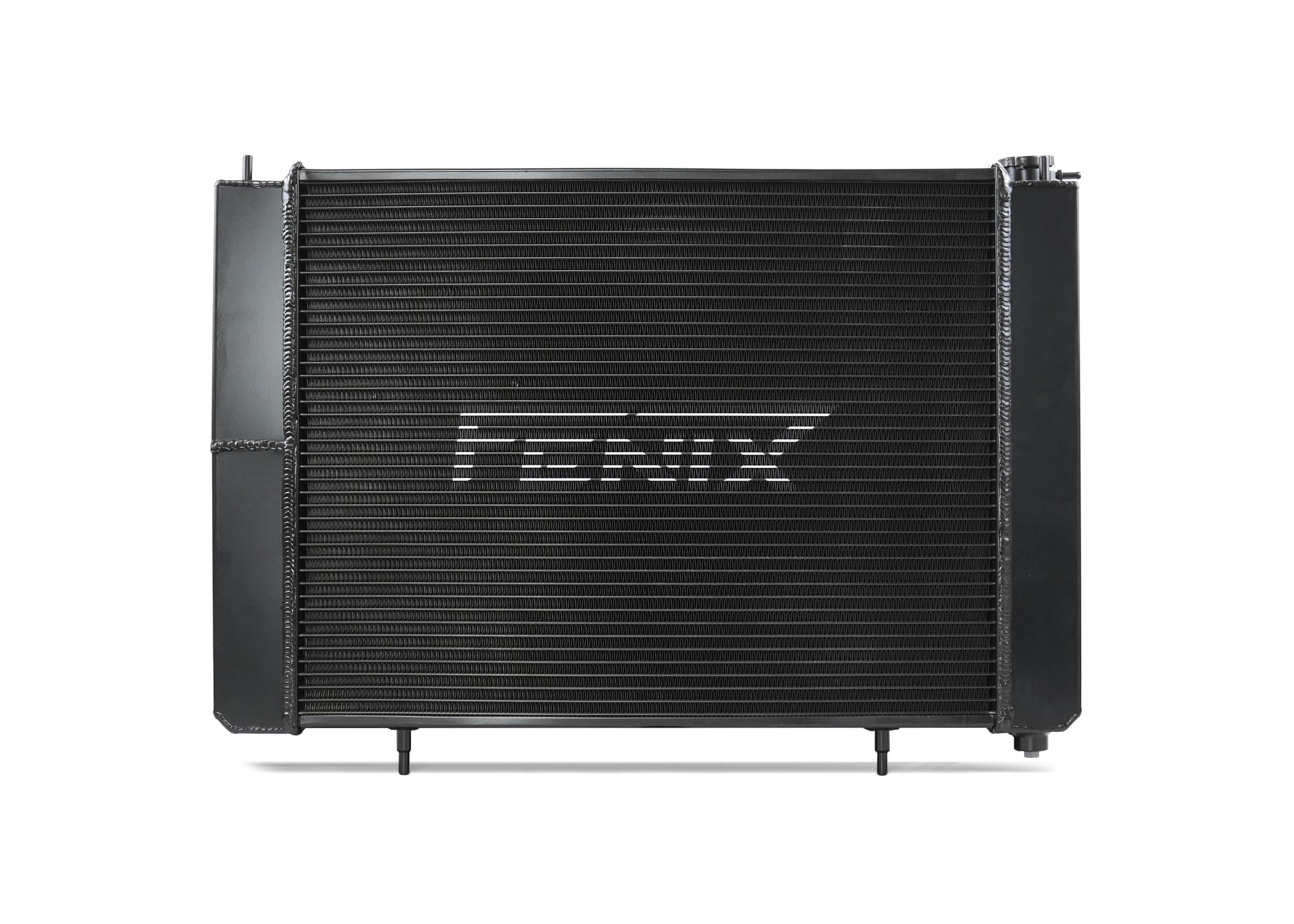

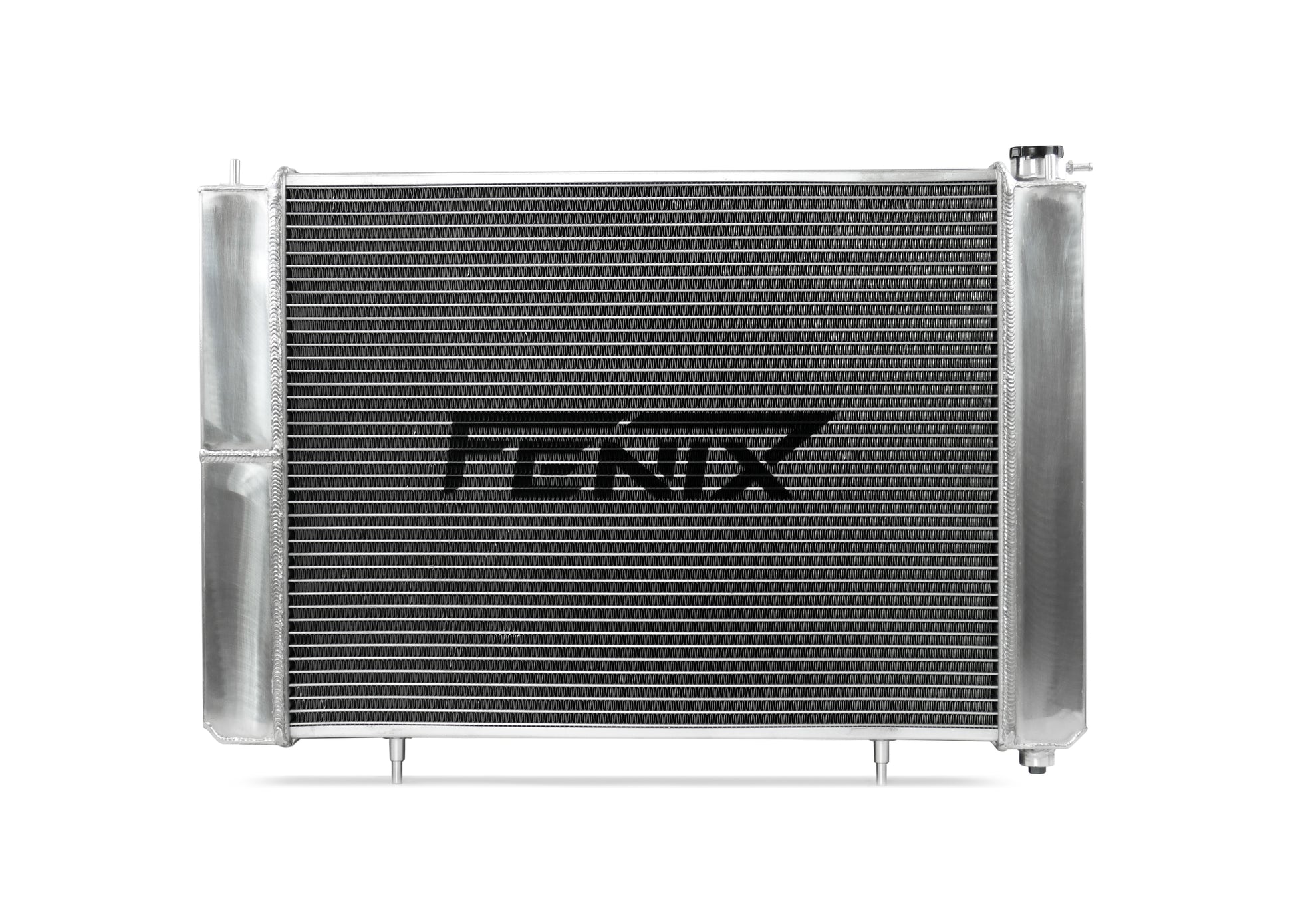

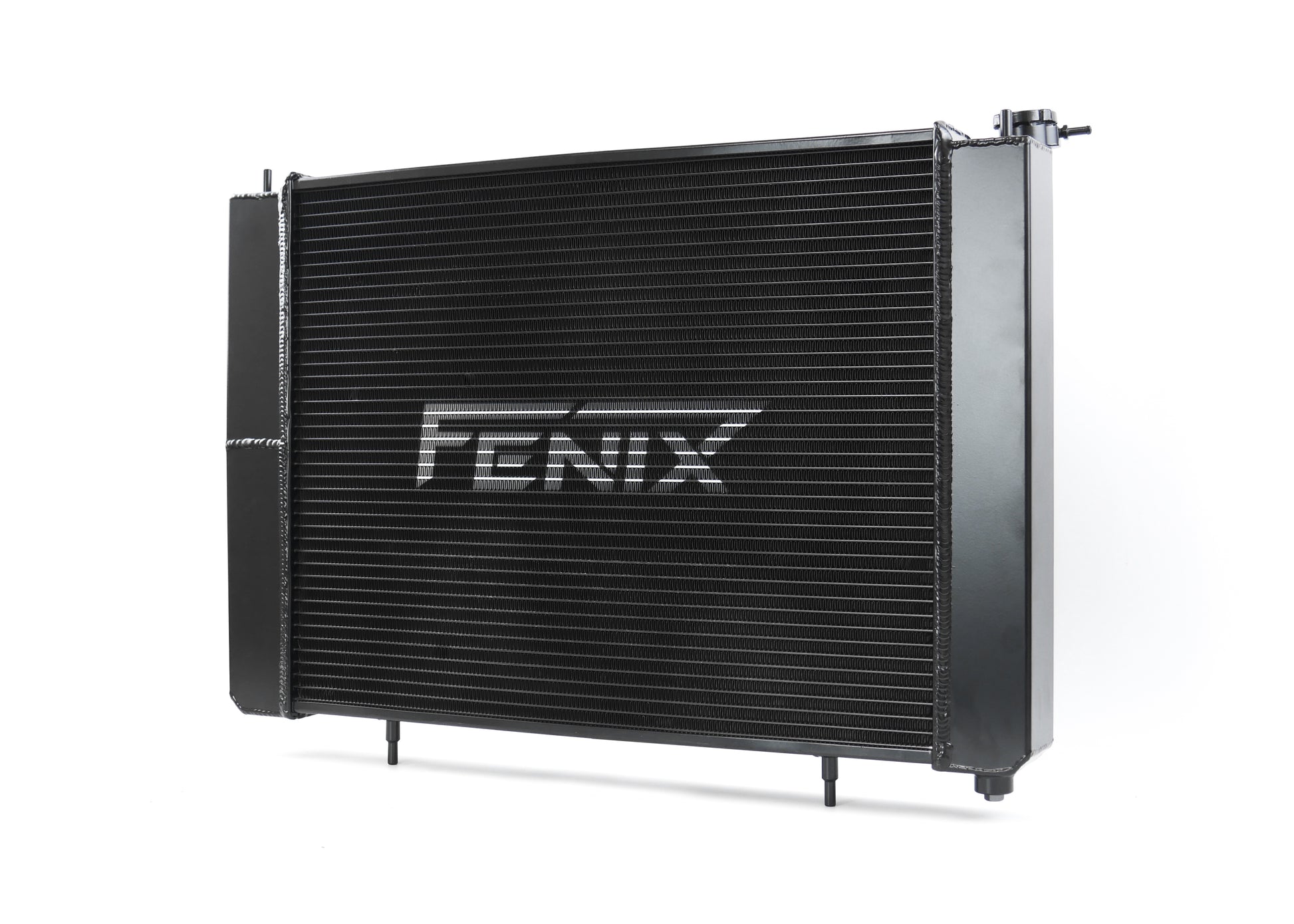

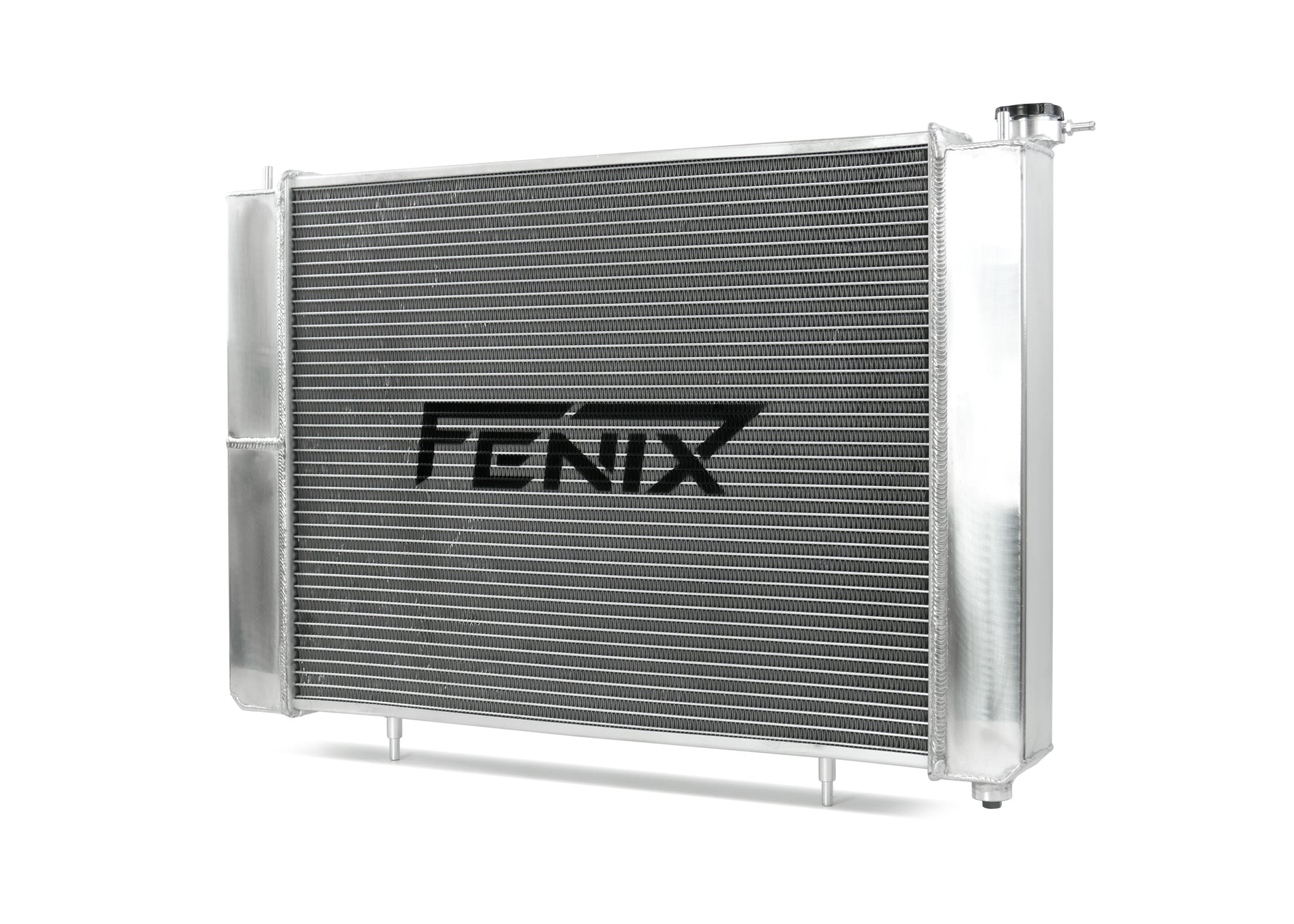

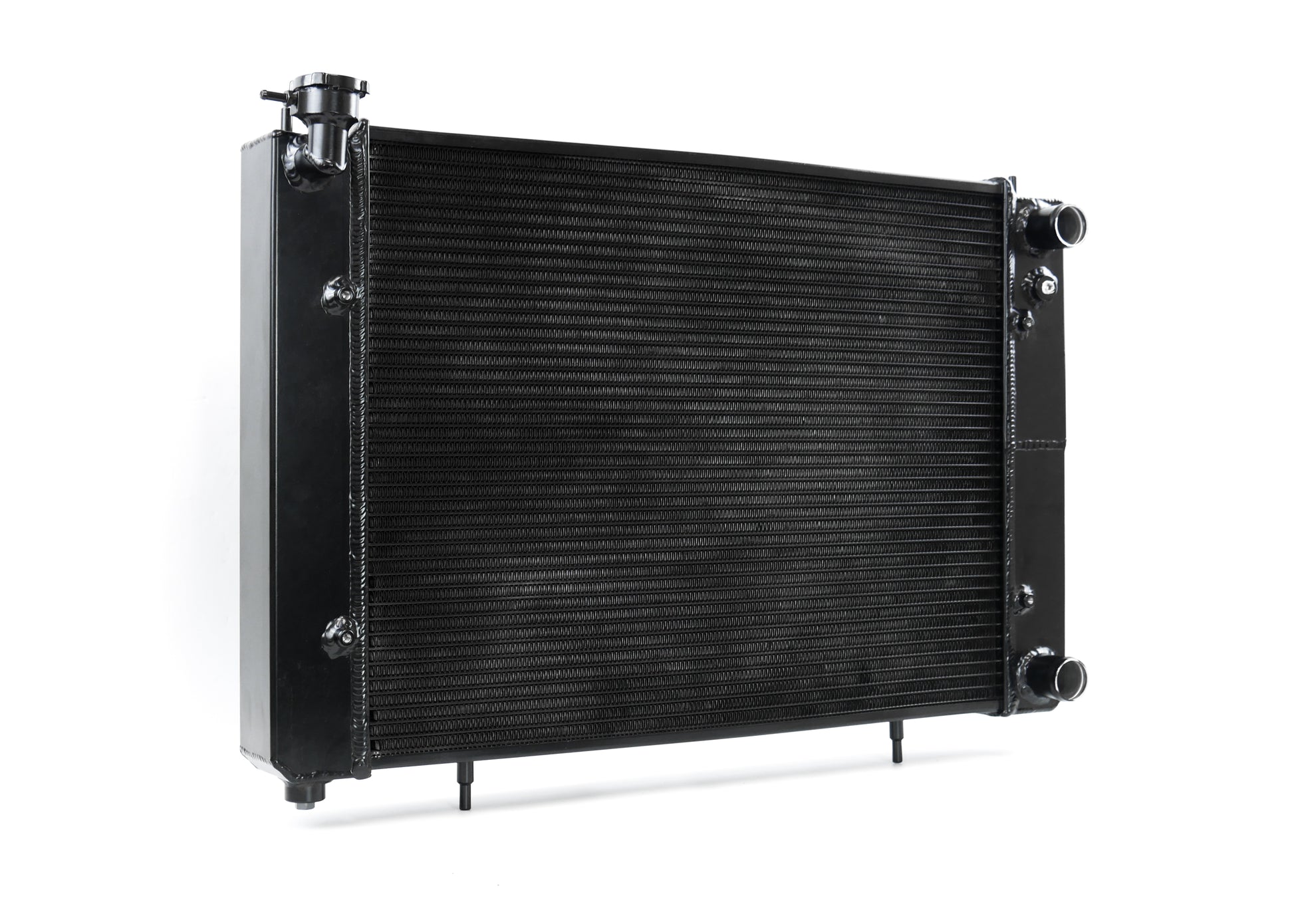

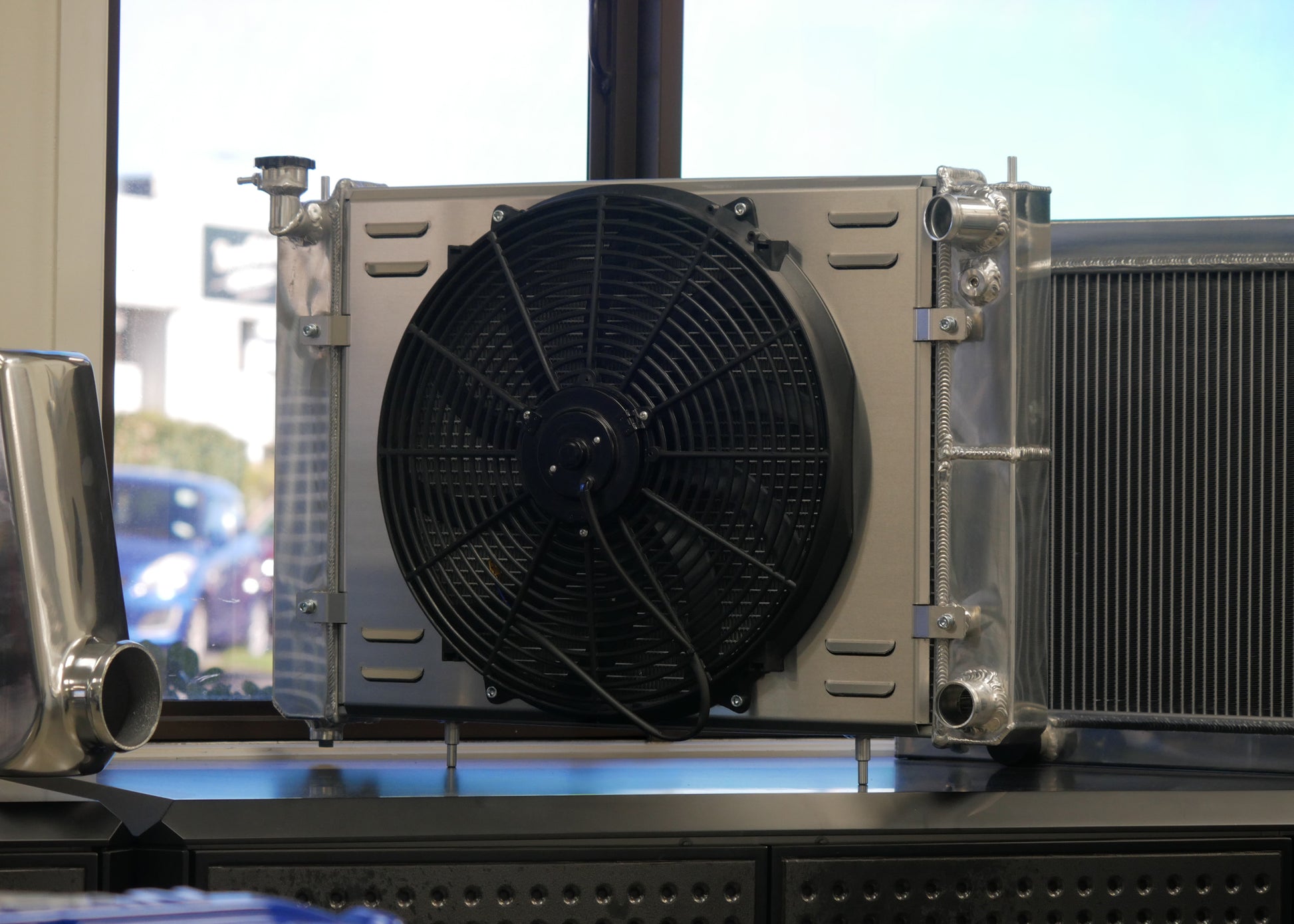

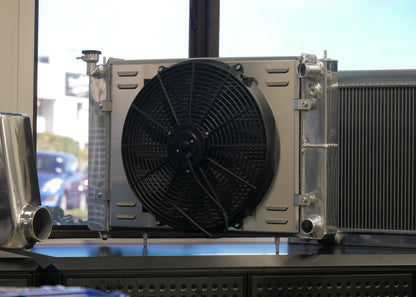

Designed to bolt directly into a S14 / S15 Silvia fitted with a RB or JZ engine conversion. Ideal If you wish to retain factory air conditioning, this Fenix Performance Alloy Radiator features a cross-flow, high density 40mm core for ultimate cooling on the street or track.

*Core size is tube and fin area only and does not include tanks or plate under tank.
