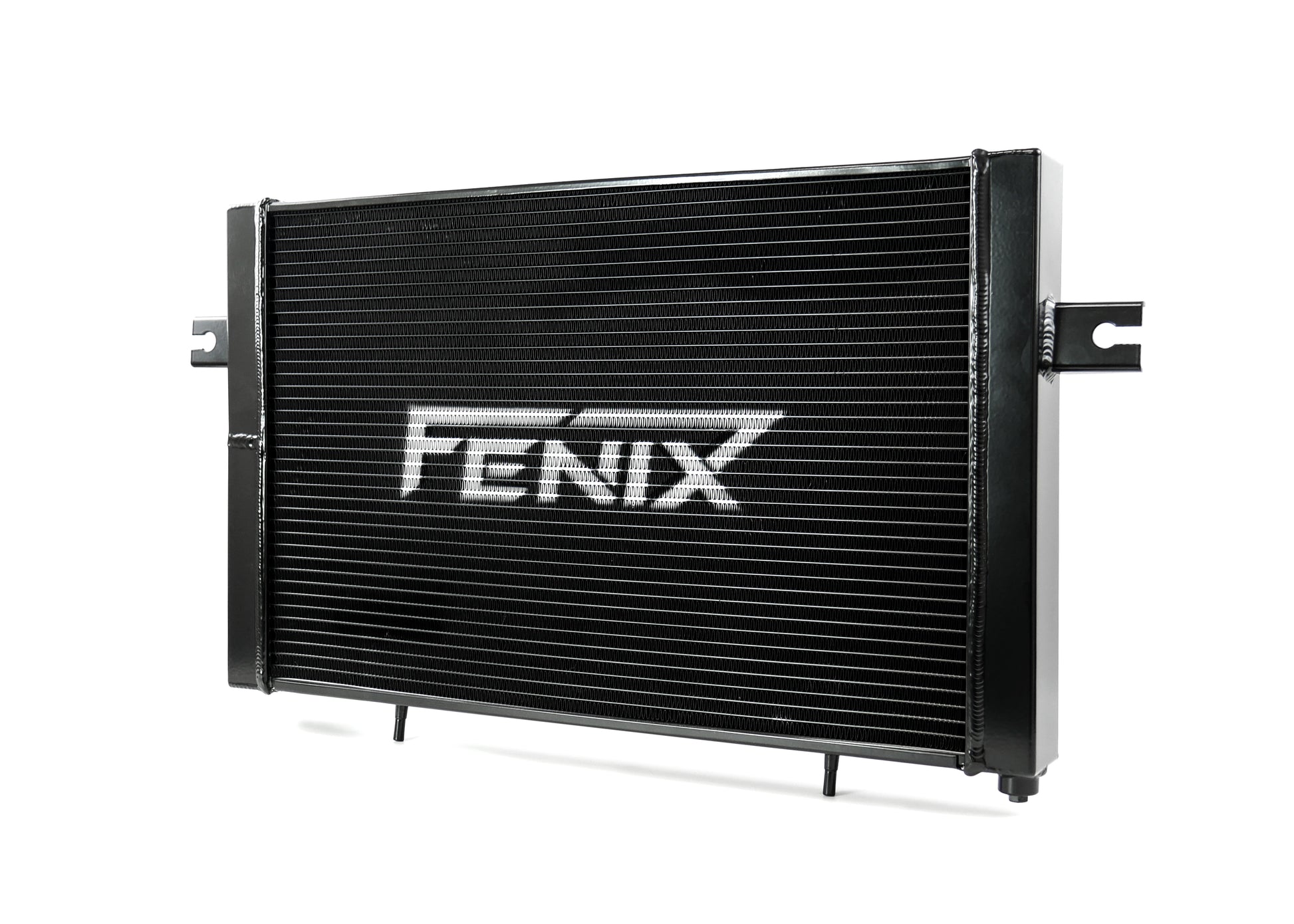

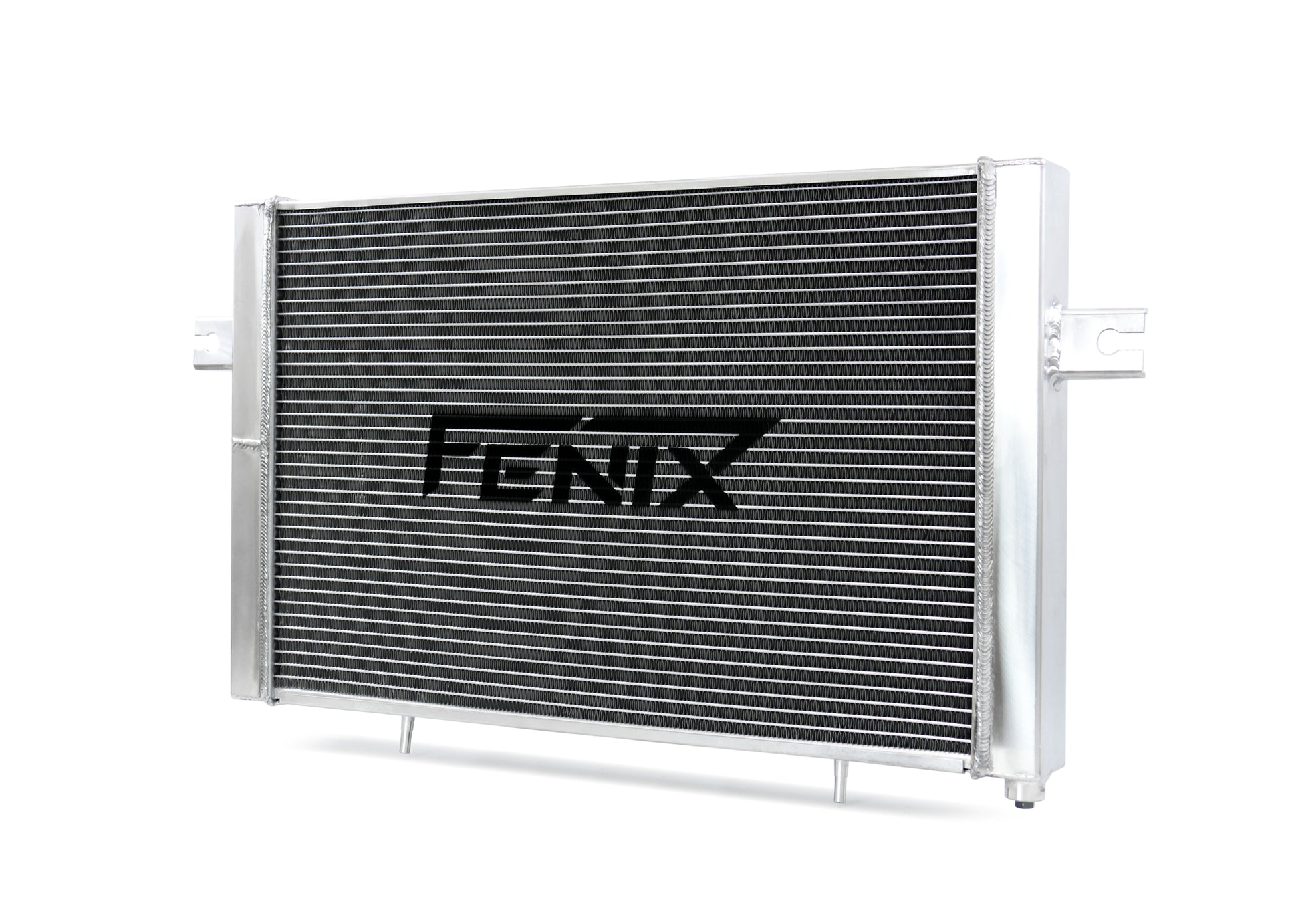

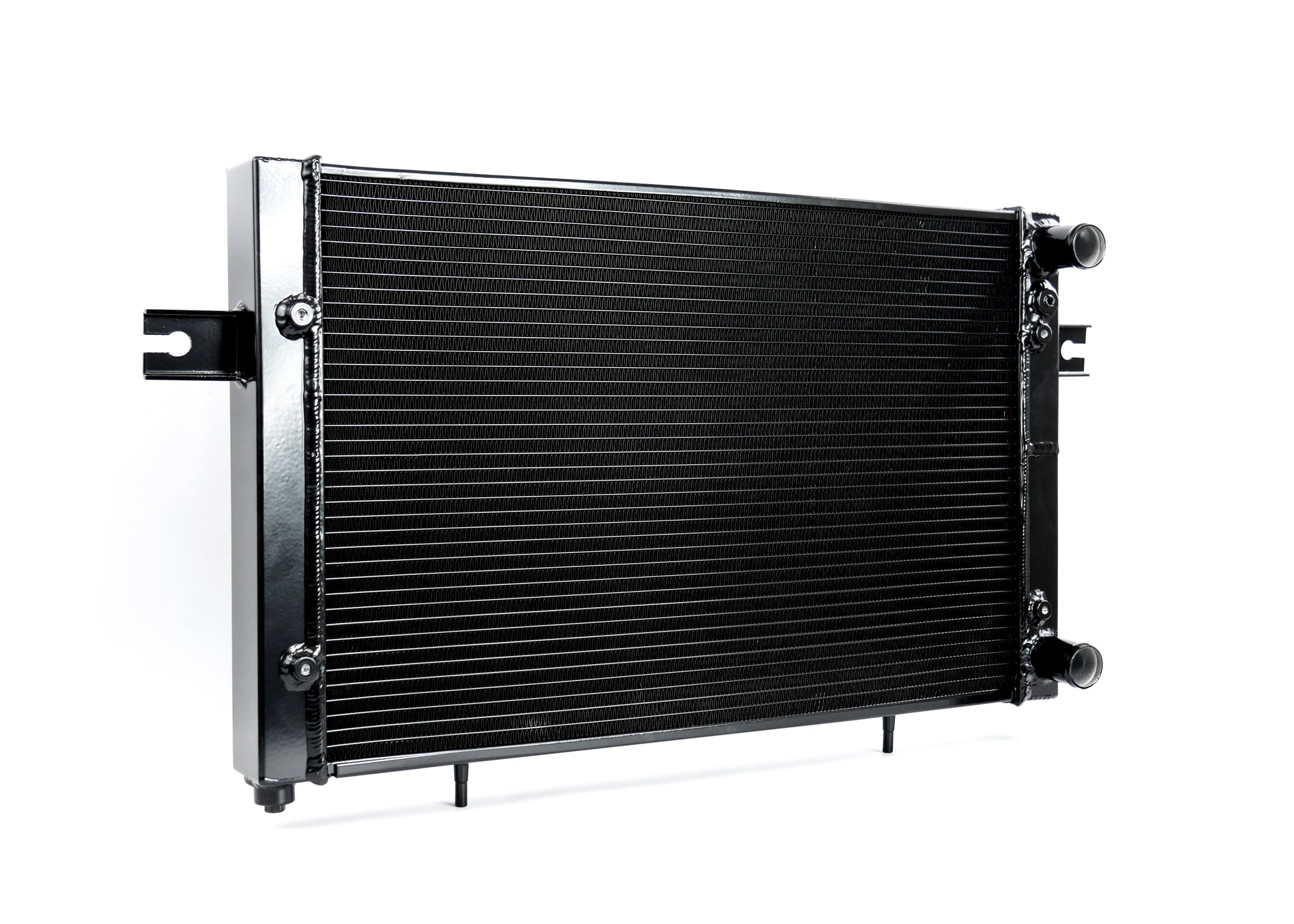

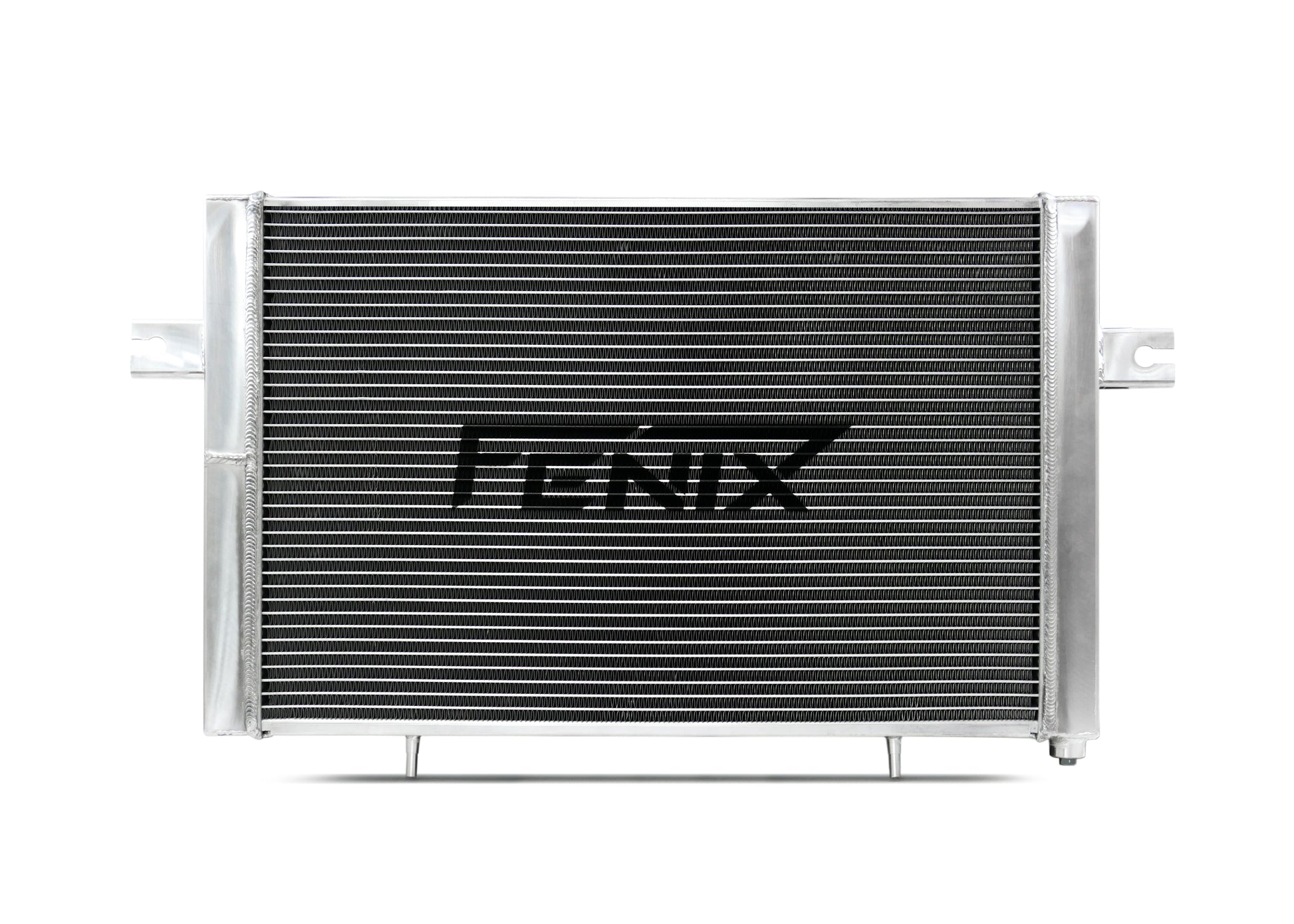

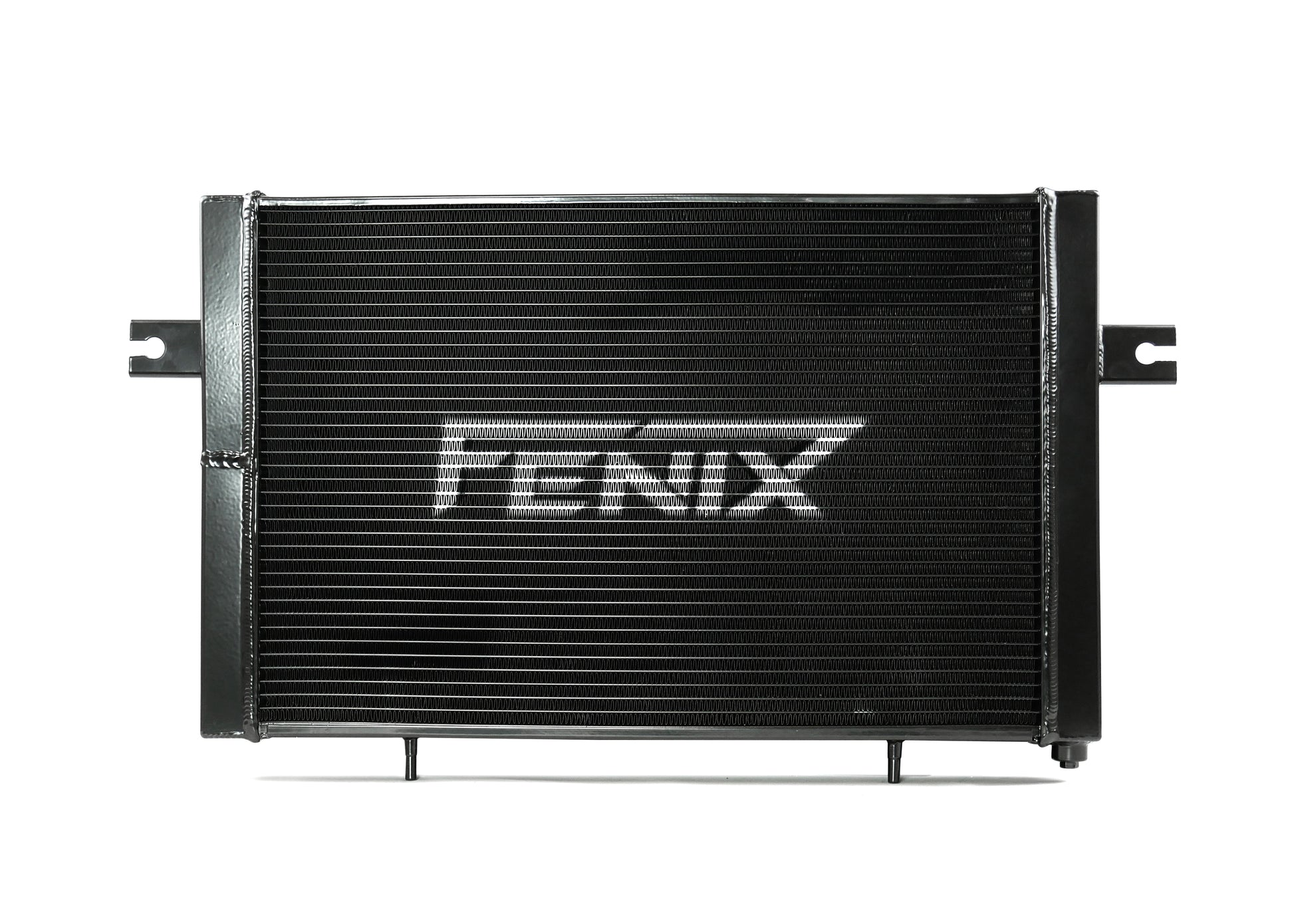

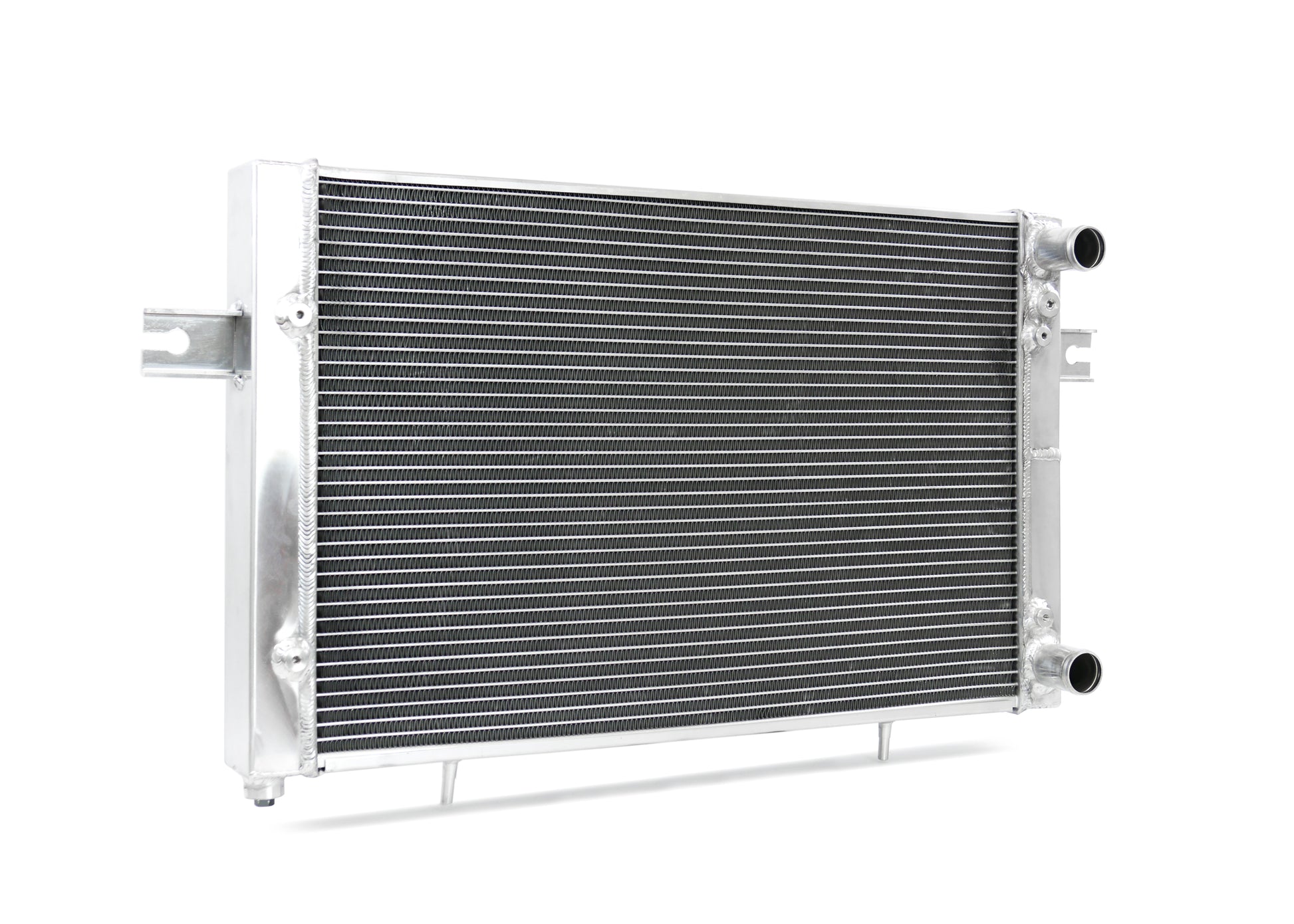

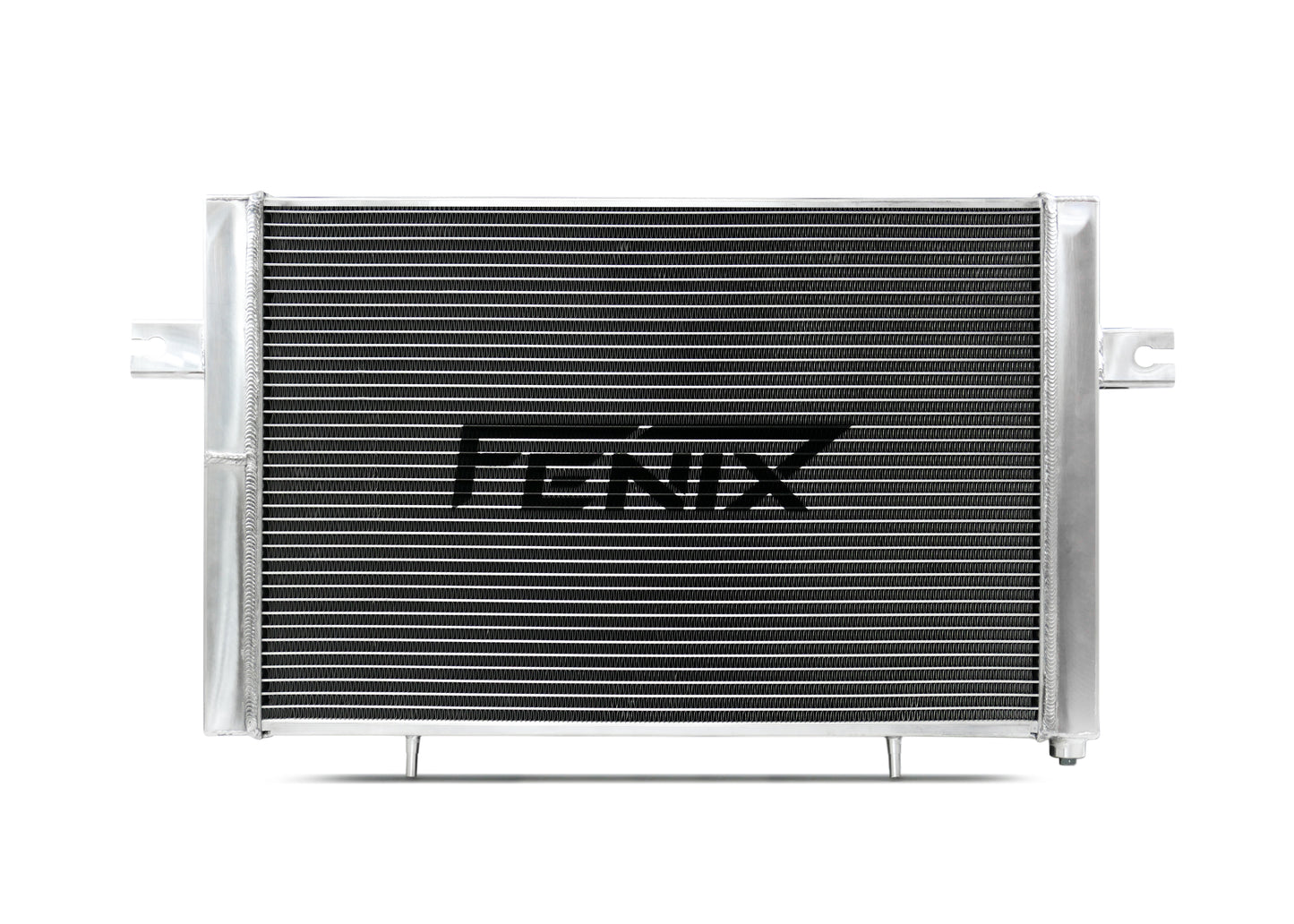

Nissan Silvia S14 / S15 with RB & JZ 1993-2002 [Tucked] | Performance Radiator

Core size: 578mm x 378mm x 50mm or 56mm.

Replacement for:

1993-98 Nissan Silvia / 200SX S14 fitted with 2.0L RB20DET / DE & 2.5L RB25DET / DE or 2.5L 1JZ-GTE & 3.0L 2JZ-GTE.

1999-02 Nissan Silvia / 200SX S15 fitted with 2.0L RB20DET/DE & 2.5L RB25DET/DE or 2.5L 1JZ-GTE & 3.0L 2JZ-GTE.
Transmission: Manual.

Features:

• Full Aluminium construction.
• 5mm High density core (50mm). 8mm Standard density core (56mm).
• Dual pass baffling.
• 1/8” PT temperature sensor port and hex bung.

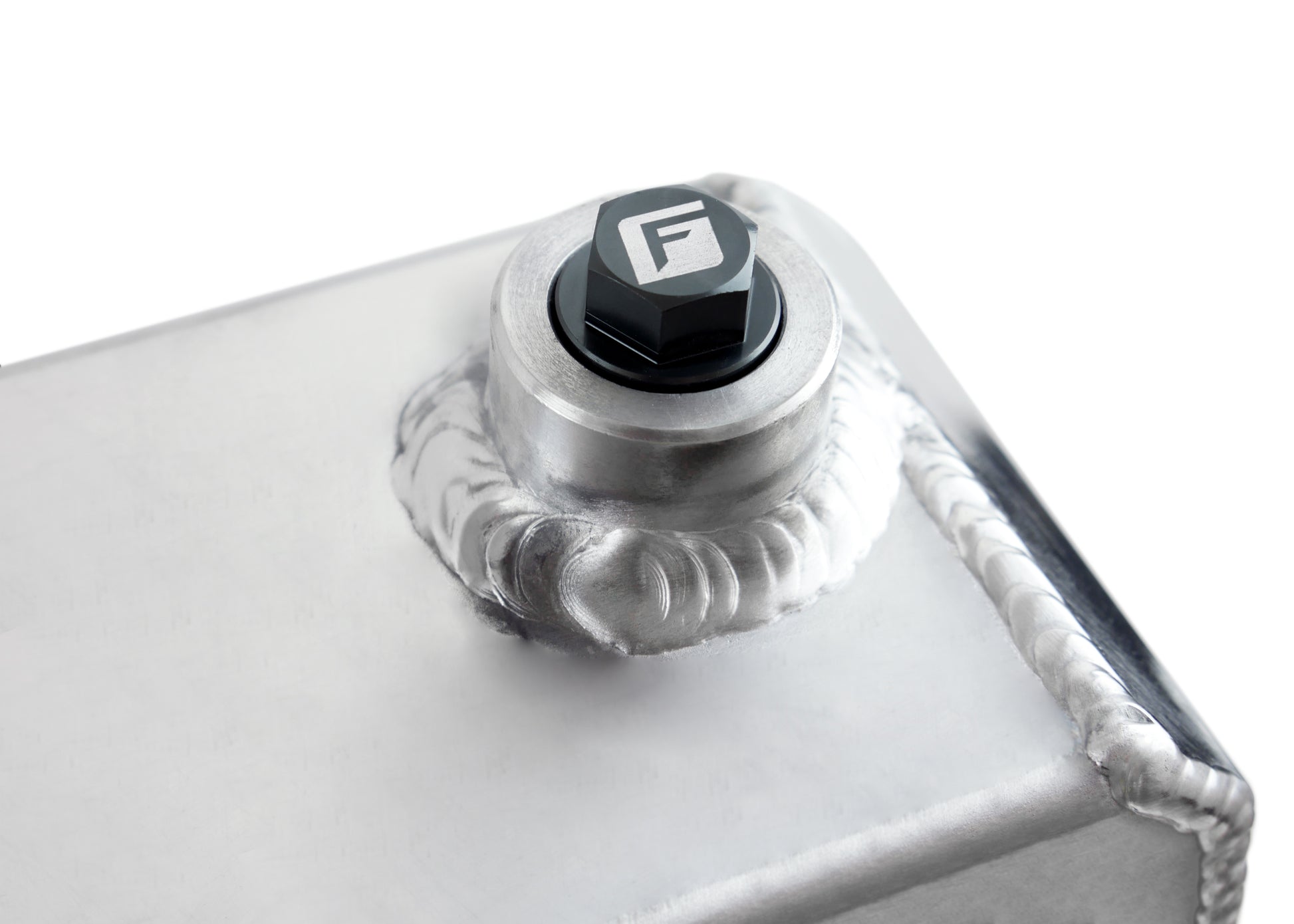

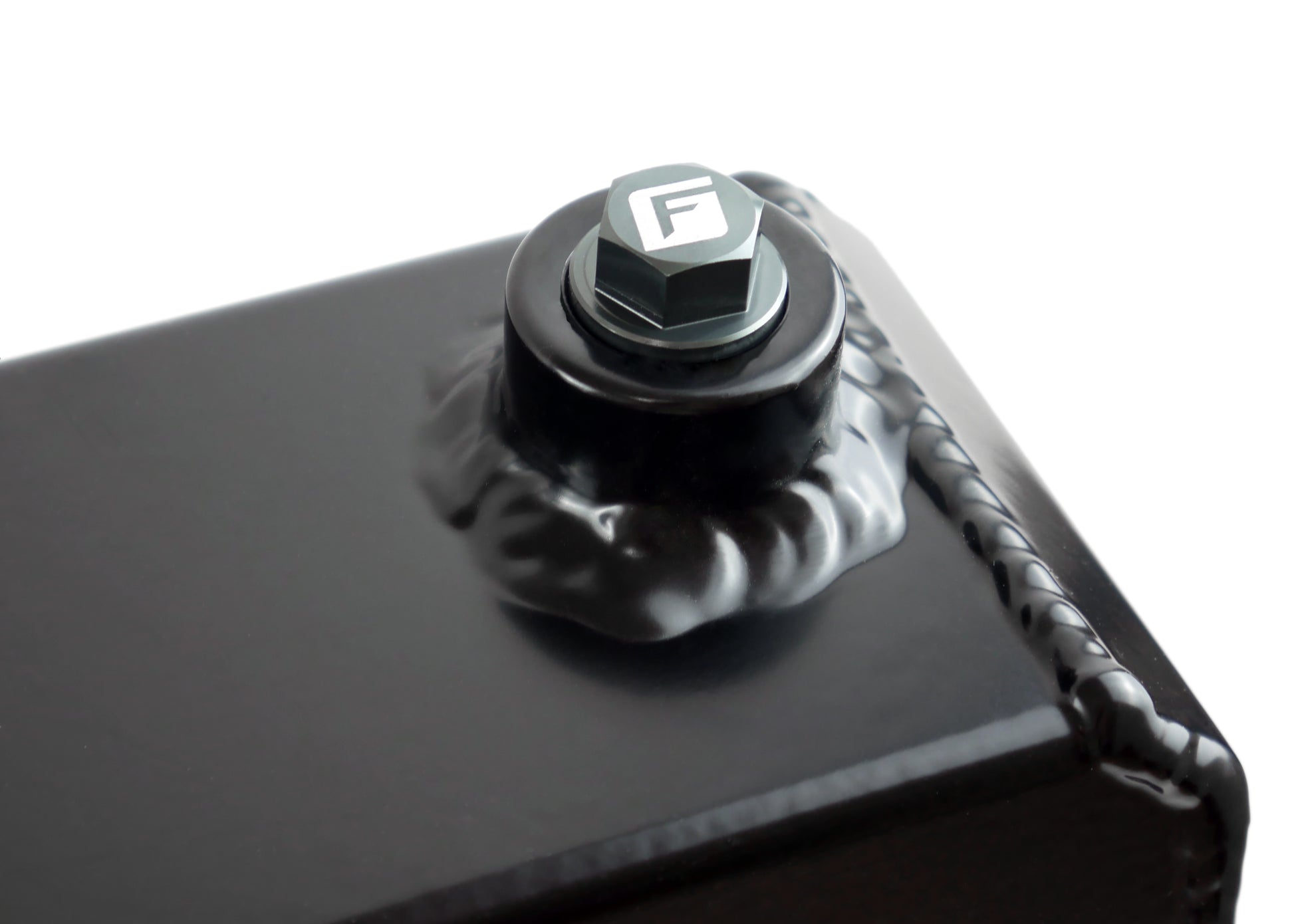

• V2 billet drainage bung.

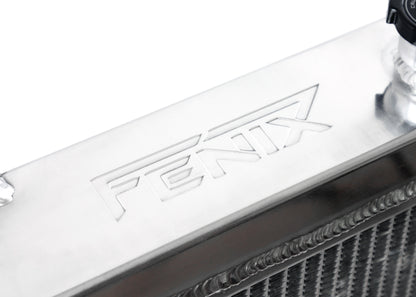

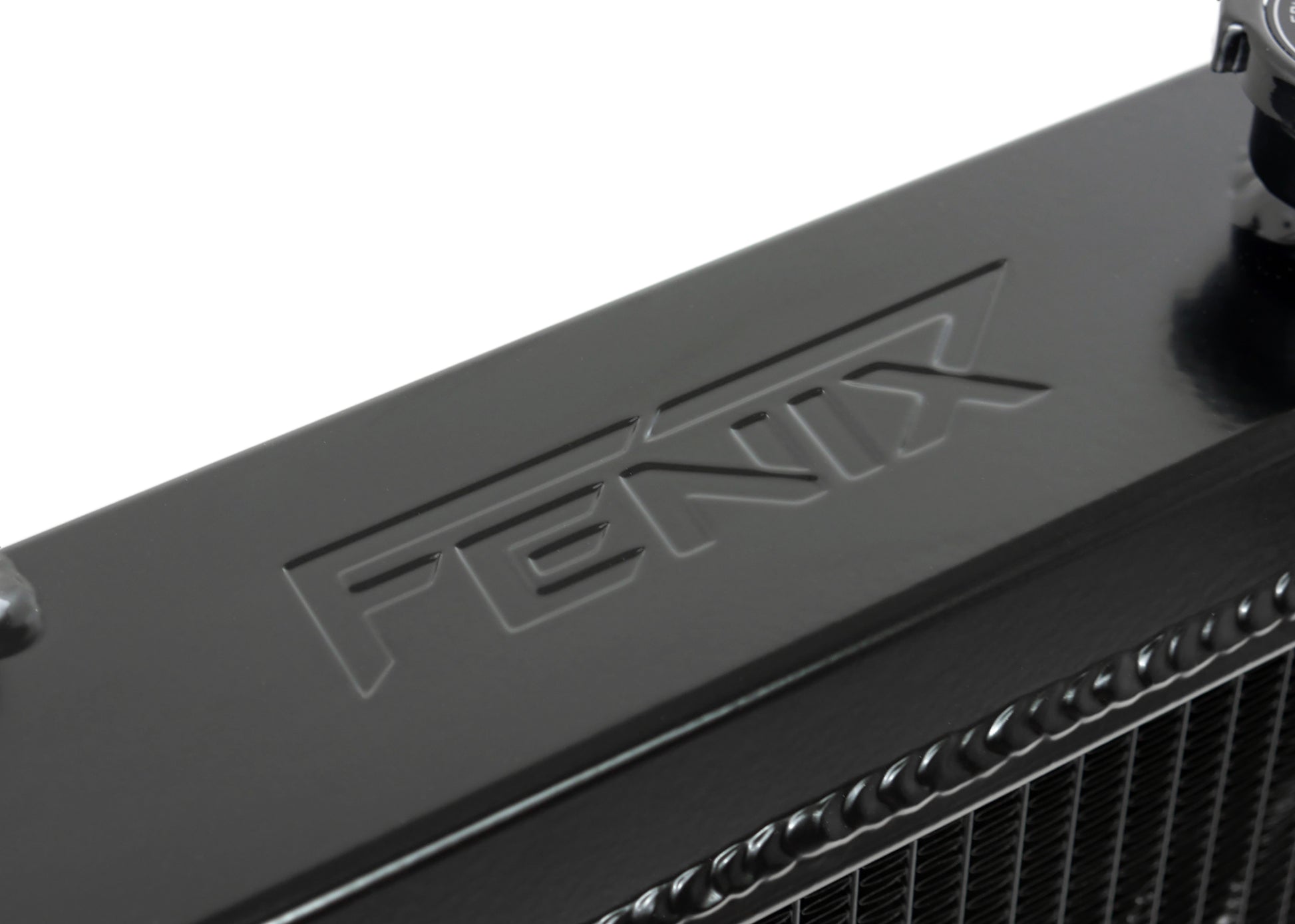

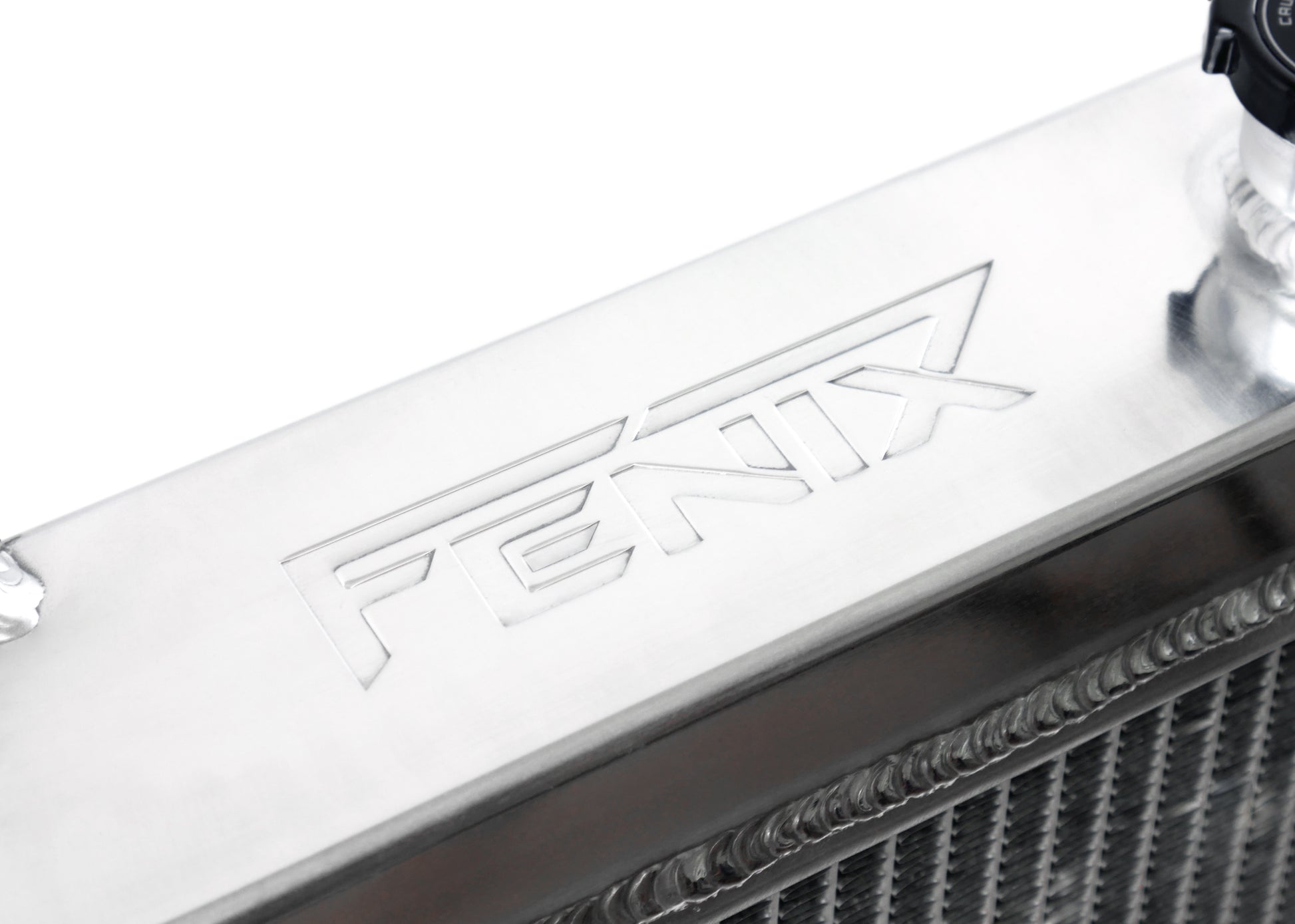

• Embossed Fenix logo on side tank.

NOTE: We recommend the use of a swirl pot with this radiator due to the lack of radiator cap. Rubber side mounts are included and recommend during installation. Solid mounting this radiator will void the warranty. *RB engines must be mounted as far back as possible for clearance.

Special Order options are made to order and can take up to 2 weeks to produce. Contact us prior to purchasing If your order is urgent.

_______________________________________________________________________

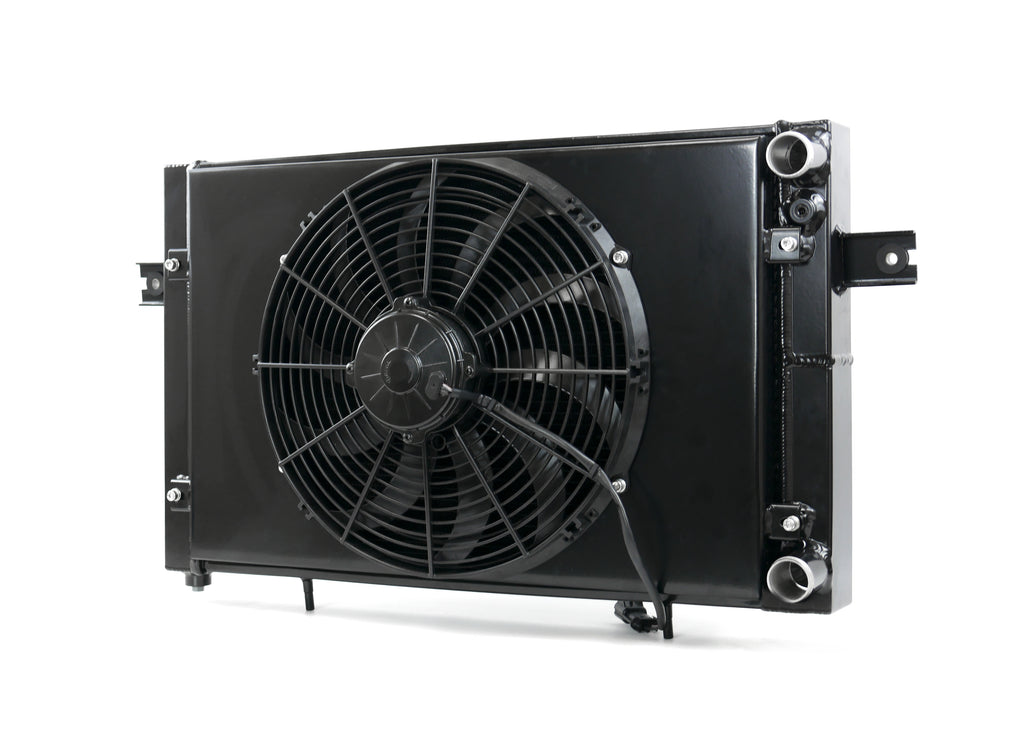

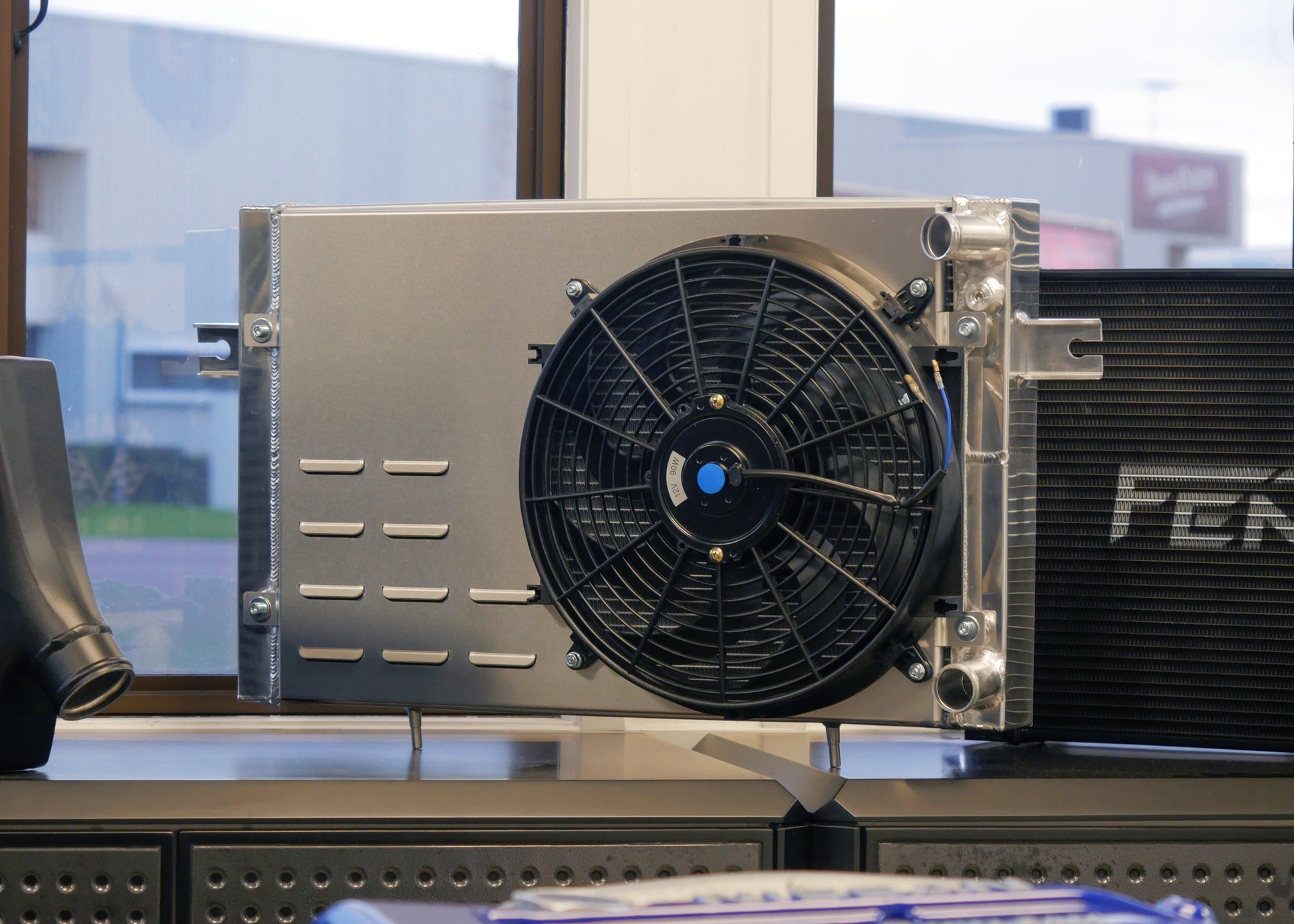

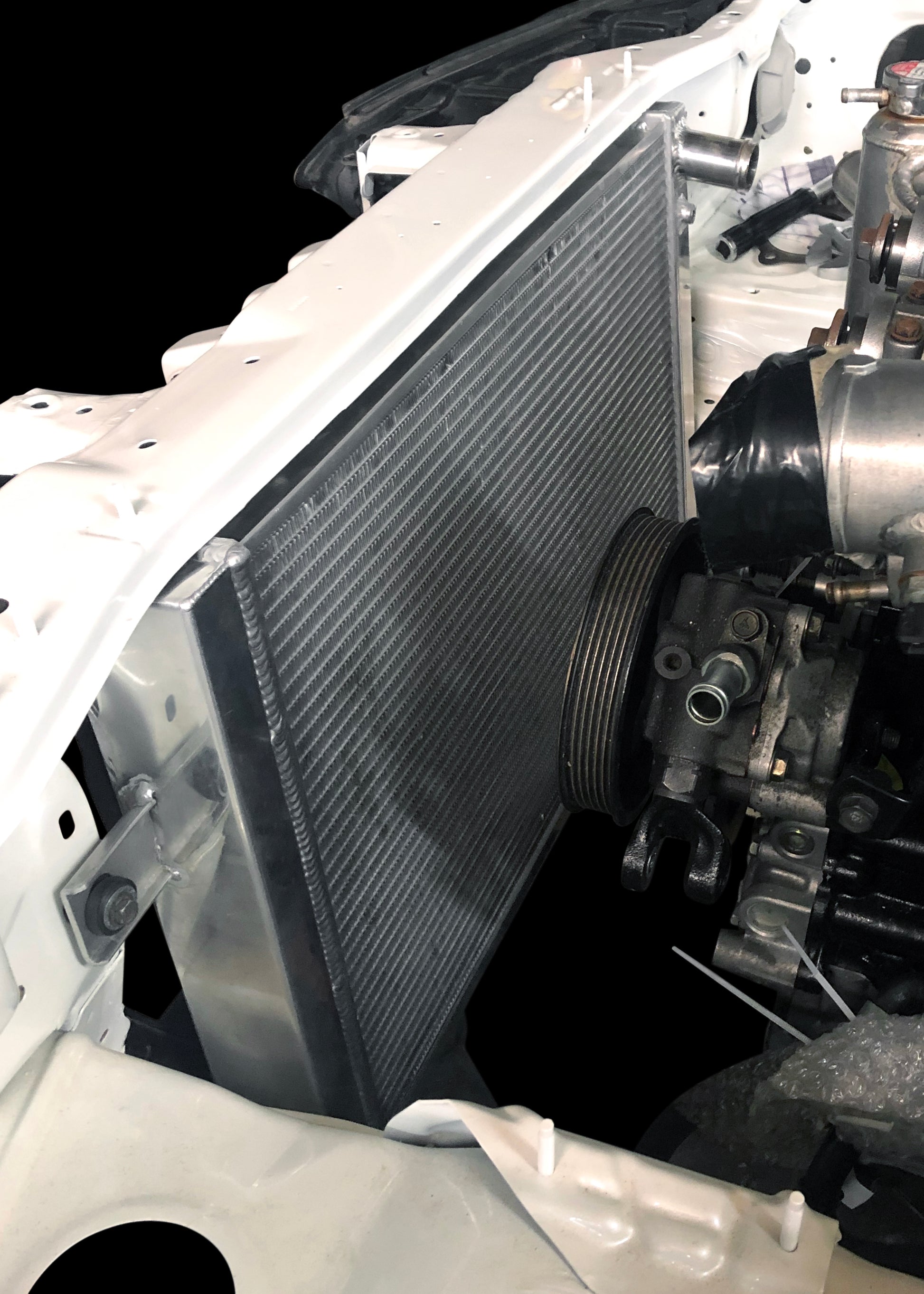

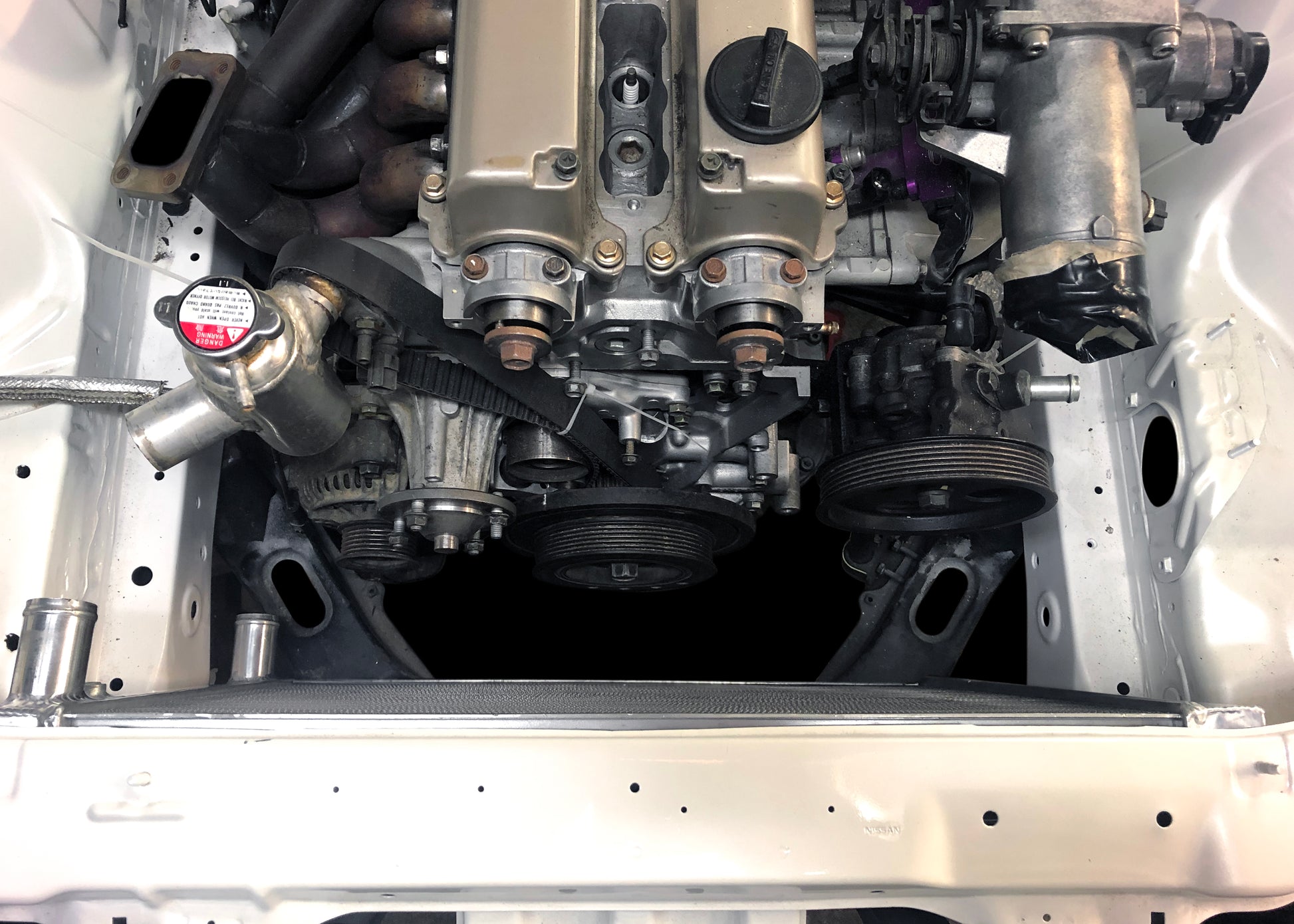

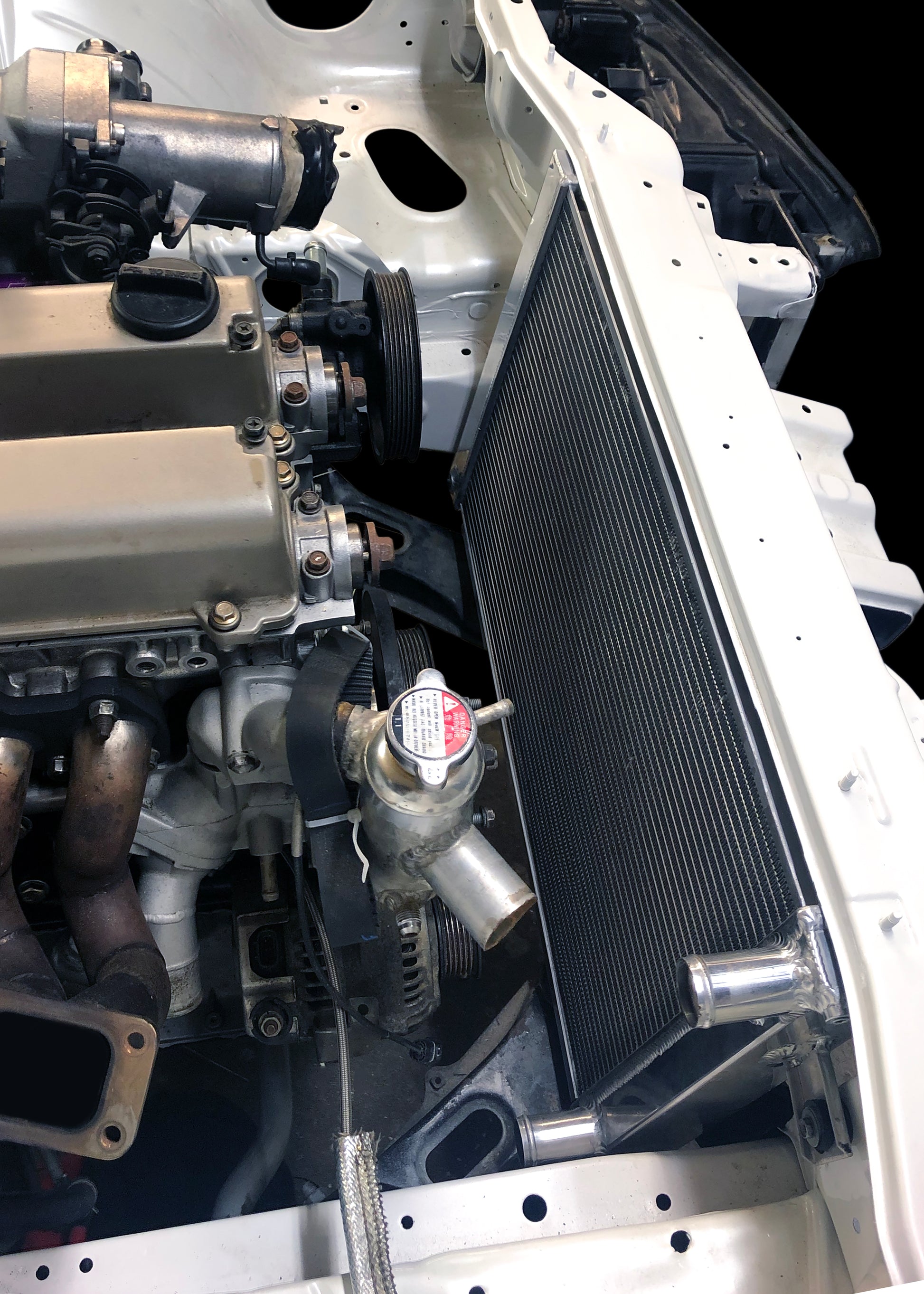

Designed to bolt directly into a S14/S15 Silvia fitted with a RB or JZ engine conversion. This Fenix Performance Alloy Radiator tucks under the factory radiator support utilising stock mounting points. With no cutting or modification to the chassis required, this cross-flow radiator is an excellent solution when additional space for an electric fan & shroud setup is needed within the engine bay.

*Core size is tube and fin area only and does not include tanks or plate under tank.
