Davis Craig Thermatic Fan Switch

Description

Davies Craig: DC-0448.

The Davies Craig Digital Thermatic Fan Switch Kit can be used with electric fans and electric water pumps.

Air temperature is detected as it passes through the radiator with the included sensor, or  directly via the coolant system with the included 1/8 NPT temperature sensor.

Suitable for 12 or 24* volt applications, this unit features an adjustable temperature range of 40°C to 110C (104ºF to 230ºF). Temp is easily set on the unit and can run x1 or x2 fans. The second fan (if applicable) will start 10 seconds after fan #1 runs.

Features:

• Max voltage: 12 to 27V.
• Max current: 40A per Fan.
• Relay setup: Dual relay.
• Speed: Single speed, 10 second delay to start up the second fan.
• Applications: Suitable for single and dual fan applications.
• Screen Display: LED digital temp display, actual temp & set temp.
• Temp Display: Centigrade or Fahrenheit.
• Temp settings: 40°c to 110°c (104°F to 230°F).
• Temp setting: Push Button.
• Circuit type: Pre-programmed micro controller.
• Output wires: Batt + Batt - IGN, AC Clutch, Fan #1, Fan #2 Thermistor Probe.
• Dimensions: 3-3/4" (95mm) x 2-9/16" (65mm) x 2-3/16" (56mm)
• The unit is NOT WaterProof.

Sensor Wire length: 142cm in total (Wire from switch 112cm plus sensor connector 30cm).

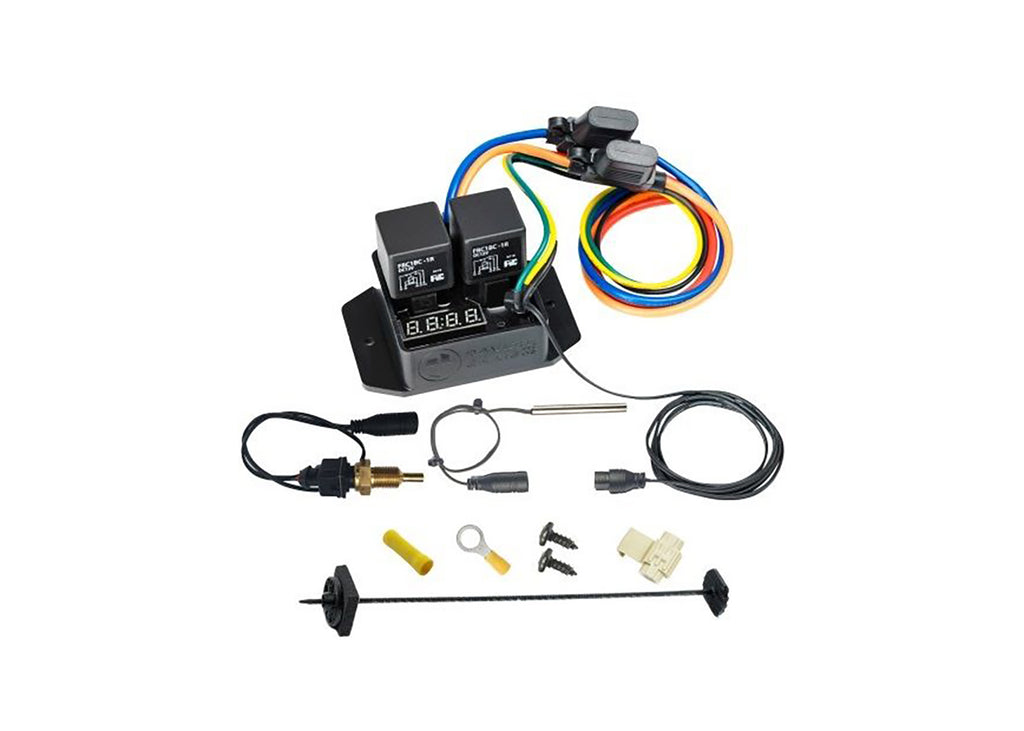

Includes:

• x1 Digital Fan Switch IP66.
• x1 Thermal Sensor Proble.
• x1 Mounting Kit for Thermal Sensor Probe.
• x1 1/8th NPT Thermal Sensor.
• x1 Red 6mm Ring Terminal.
• x1 Blue 6mm Ring Terminal.
• x2 Blue Wire Joiner.
• x2 Self Tap Screw.

NOTE: Kit sold in 12 volt configuration, for 24 volt application, relays will need to be changed to 24v units (not included).
